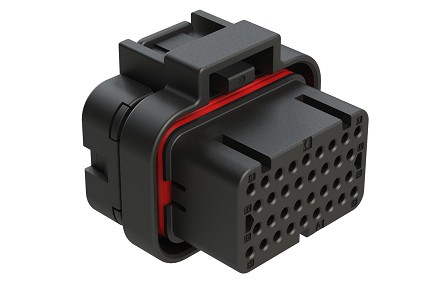

ATS06-34SA1 34 Position Plug, Socket, Contact Size 20, Sing

ATS06-34SA1 34 Position Plug, Socket, Contact Size 20, Single Latch, Keyed A, End Cap, Black. Comparable to PN# 4-1437290-0

$0.00

Plug

PART NUMBER: ATS06-34SA1

Datasheet:

No. of Positions: 34
Contact Size: 20
Contact Type (Pin/Socket): Socket
Gender: Female
Contacts Included?: No
Amperage: 7.5 A
Wire Range: 18-28 AWG
Voltage: 250 V
Housing Material: Thermoplastic
Operating Temperature: -55°C to +125°C
IP Rating: IP67 & IP69k (in mated condition)
Color: Black
Shape: Rectangular
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megaohms min. @ 25°C
Seal Material: Silicon Rubber
Seal Diameter: 1.12mm (.044") - 2.31mm (.091")
Mating Cycle Durability: 500
RoHS Compliant: TRUE
Mating Part(s)*: ATS13-34PA1-* AND ATS15-34PA1-* RECEPTACLE

QUANTITY

34 Position Plug, Socket, Contact Size 20, Single Latch, Keyed A, End Cap, Black

ATS06-34SA1 34 Position Plug, Socket, Contact Size 20, Single Latch, Keyed A, End Cap, Black. Comparable to PN# 4-1437290-0
