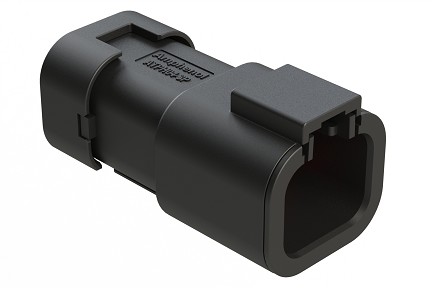

ATPH04-3P-SF01BK 3 Position Receptacle, Black, Pin Contact

ATPH04-3P-SF01BK 3 Position Receptacle, Black, Pin Contact Size 3.0mm, 30A, 1000V, Snap Fit End Cap

$0.00

Receptacle

PART NUMBER: ATPH04-3P-SF01BK

Datasheet:

No. of Positions: 3
Contact Size: 3.0mm (Size #10)
Contact Type (Pin/Socket): Pin
Gender: Male
Contacts Included: No
Amperage: 30A
Wire Range: 10-14 AWG (6.0-2.0mm²)
Voltage: 1000V
Housing Material: Thermoplastic
Operating Temperature: -55°C to +125°C
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color: Black
Shape: Rectangular
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 3000 volts AC
Insulation Resistance: 1000 Megaohm min @ 25°C
Seal Material: Silicone Rubber
Seal Color: Red
Seal Diameter: 3.0mm(0.118") - 4.95mm(0.195")
Mating Cycle Durability: >100
RoHS Compliant: Yes
Mating Part(s)*: ATPH06-3S-SF01*

QUANTITY

3 Position Receptacle, Black, Pin Contact Size 3.0mm, 30A, 1000V, Snap Fit End Cap
