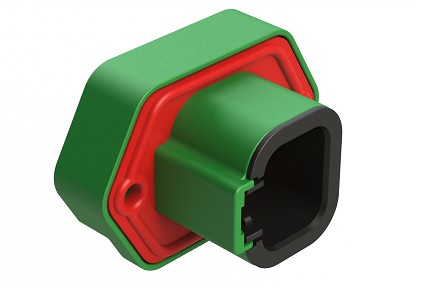

ATP15-4PC-BM03 4 Position PCB Receptacle with Flange, Pin, Tin Plated, Self-Threading, Gasket, Keyed C, Green
ATP15-4PC-BM03 4 Position PCB Receptacle with Flange, Pin, Tin Plated, Self-Threading, Gasket, Keyed C, Green

ATP15-4PC-BM03 4 Position PCB Receptacle with Flange, Pin, Tin Plated, Self-Threading, Gasket, Keyed C, Green

$0.00
Receptacle, PCB
PART NUMBER: ATP15-4PC-BM03
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 4
  • Contact Size: 12
  • Contact Type (Pin/Socket): Pin
  • Contacts Included?: Yes
  • Gender: Male
  • Amperage: 25A
  • Housing Material: Thermoplastic
  • Voltage: 250V
  • Operating Temperature: -55°C to +125°C
  • Color: Green
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Contact Plating: Tin
  • Contact Material: Copper Alloy
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • RoHS Compliant?: Yes
  • Mating Cycle Durability: 100
  • Mating Part*: ATP06-4S* Plugs with A,B,C,D Key Wedgelock
4 Position PCB Receptacle with Flange, Pin, Tin Plated, Self-Threading, Gasket, Keyed C, Green
