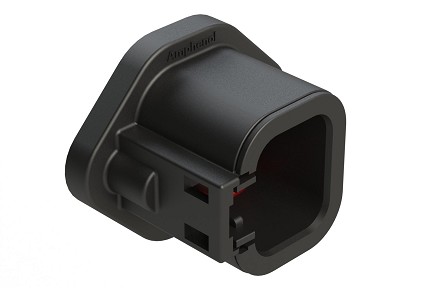

  6. ATP10-4P-BM03 4 Position Front Mount PCB Receptacle, Straight, Pin, Tin-Plated, Self-Threading, Gasket, Black. Comparable to PN# DTP10-4P
ATP10-4P-BM03 4 Position Front Mount PCB Receptacle, Straight, Pin, Tin-Plated, Self-Threading, Gasket, Black. Comparable to PN# DTP10-4P
ATP10-4P-BM03 4 Position Front Mount PCB Receptacle, Straight, Pin, Tin-Plated, Self-Threading, Gasket, Black. Comparable to PN# DTP10-4P

ATP10-4P-BM03 4 Position Front Mount PCB Receptacle, Straight, Pin, Tin-Plated, Self-Threading, Gasket, Black. Comparable to PN# DTP10-4P

$0.00
Front Mount PCB Receptacle
PART NUMBER: ATP10-4P-BM03
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 4
  • Contact Size: 12
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included?: TRUE
  • Amperage: 25A
  • Voltage: 250
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
  • Contact Plating: Tin
  • Contact Material: Copper Alloy
  • Color: Black
  • Shape: Rectangular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part*: ATP06-4S* PLUG
4 Position Front Mount PCB Receptacle, Straight, Pin, Tin-Plated, Self-Threading, Gasket, Black. Comparable to PN# DTP10-4P
