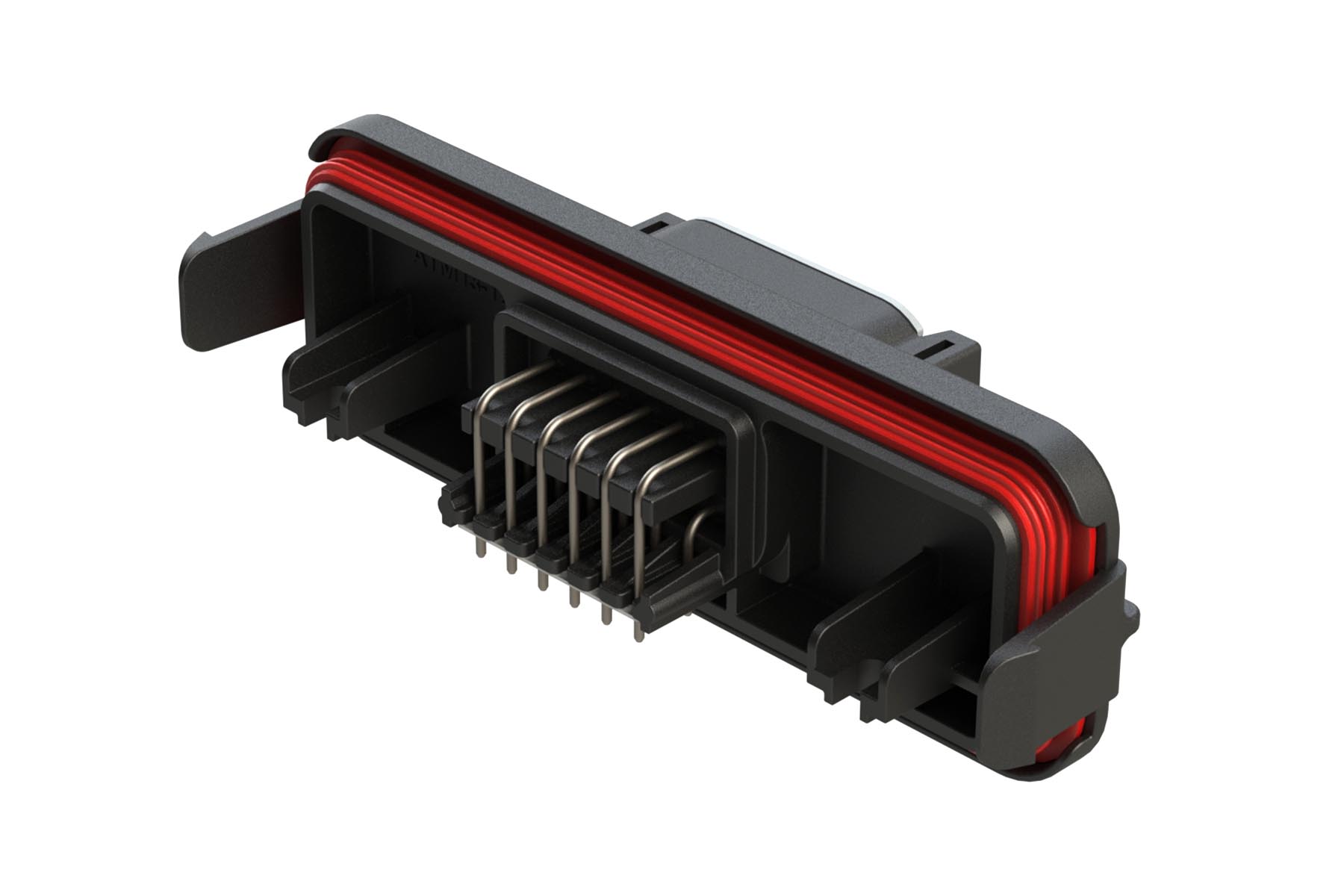

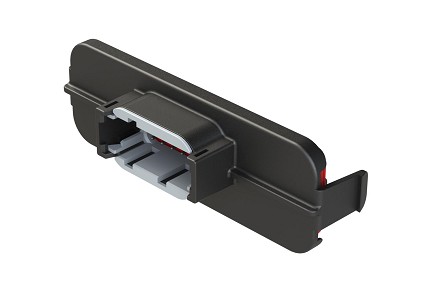

  6. ATM13-12PA-R008 12 Position Receptacle Header, Size 20 Contacts, Keyed A, Tin Plating, Black. Use with Armor IPX ™ Standard Enclosures, ATM Connectors. Comparable to PN# DTM13-12PA-R008
ATM13-12PA-R008 12 Position Receptacle Header, Size 20 Contacts, Keyed A, Tin Plating, Black. Use with Armor IPX ™ Standard Enclosures, ATM Connectors. Comparable to PN# DTM13-12PA-R008
ATM13-12PA-R008 12 Position Receptacle Header, Size 20 Contacts, Keyed A, Tin Plating, Black. Use with Armor IPX ™ Standard Enclosures, ATM Connectors. Comparable to PN# DTM13-12PA-R008

ATM13-12PA-R008 12 Position Receptacle Header, Size 20 Contacts, Keyed A, Tin Plating, Black. Use with Armor IPX ™ Standard Enclosures, ATM Connectors. Comparable to PN# DTM13-12PA-R008

$0.00
Header
PART NUMBER: ATM13-12PA-R008
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Product Line: A Series
  • Series: ATM, ARMOR IPX™
  • No. of Positions: 12, A Key
  • Contact Size: 20
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included: Yes
  • Amperage: 7.5A
  • Voltage: 250V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP69K (mated condition)
  • Contact Plating: Tin
  • Contact Material: Copper Alloy
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • Color: Black
  • Shape: Rectangular
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Mating Part(s)*: ATM06-12SA* Plug
12 Position Receptacle Header, Size 20 Contacts, Keyed A, Tin Plating, Black. Use with Armor IPX ™ Standard Enclosures, ATM Connectors. Comparable to PN# DTM13-12PA-R008
