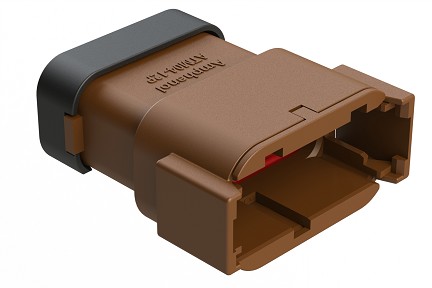

  6. ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003
ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003
ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003

ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003

$0.00
Receptacle
PART NUMBER: ATM04-12PD-SF1BN
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 12
  • Contact Size: 20
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Wire Range: 16 - 22 AWG (1.5 - 0.35 mm²)
  • Amperage: 7.5A
  • Housing Material: Thermoplastic
  • Volts: 250
  • Operating Temperature: -55°C to +125° C
  • Color: Brown
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition)IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohms min. @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
  • Seal Color: Red
  • RoHS Compliant : TRUE
  • Mating Cycle Durability: >100
  • Wedgelock Part Number: AWM-12P
  • Mating Part(s)*: ATM06-12SD*
12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P).  Comparable to PN# DTM04-12PD-E003



Related Items

AT11-026-0205 Plastic Mounting Clip, Grey. Comparable to PN# 1011-026-0205
AT11-026-0205 Plastic Mounting Clip, Grey. Comparable to PN# 1011-026-0205
REQUEST A QUOTE
AT11-030-0205 Plastic Mounting Clip, Black. Comparable to PN# 1011-030-0205
AT11-030-0205 Plastic Mounting Clip, Black. Comparable to PN# 1011-030-0205
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT11-310-0205 Mounting clip for AT, ATM, ATP, ATHD Series, 2, 3, 4, 6, 12 positions connectors plastic, black, free stud mount. Comparable to PN# 1011-310-0205
AT11-310-0205 Mounting clip for AT, ATM, ATP, ATHD Series, 2, 3, 4, 6, 12 positions connectors plastic, black, free stud mount. Comparable to PN# 1011-310-0205
REQUEST A QUOTE
AT27-003-1200 Metal Mounting Clips, 11mm hole diameter, stainless steel. Comparable to PN# 1027-003-1200
AT27-003-1200 Metal Mounting Clips, 11mm hole diameter, stainless steel. Comparable to PN# 1027-003-1200
REQUEST A QUOTE
AT27-004-1200 Metal Mounting Clips, 13mm hole diameter, stainless steel, zinc plated. Comparable to PN# 1027-004-1200
AT27-004-1200 Metal Mounting Clips, 13mm hole diameter, stainless steel, zinc plated. Comparable to PN# 1027-004-1200
REQUEST A QUOTE
AT27-005-1200 Metal Mounting Clips, 13mm hole diameter, stainless steel. Comparable to PN# 1027-005-1200
AT27-005-1200 Metal Mounting Clips, 13mm hole diameter, stainless steel. Comparable to PN# 1027-005-1200
REQUEST A QUOTE
AT27-007-1200 Metal side mounting clip, no hole. Comparable to PN# 1027-007-1200
AT27-007-1200 Metal side mounting clip, no hole. Comparable to PN# 1027-007-1200
REQUEST A QUOTE
AT27-008-1200 Mounting clip for AT, ATM, ATP, ATHD Series, 2, 3, 4, 6, 12 positions connectors steel, zinc plating , .433 [11.00 mm] dia. hole. Comparable to PN# 1027-008-1200
AT27-008-1200 Mounting clip for AT, ATM, ATP, ATHD Series, 2, 3, 4, 6, 12 positions connectors steel, zinc plating , .433 [11.00 mm] dia. hole. Comparable to PN# 1027-008-1200
REQUEST A QUOTE
AT27-009-1200 Metal side mounting clip, 13mm hole. Comparable to PN# 1027-009-1200
AT27-009-1200 Metal side mounting clip, 13mm hole. Comparable to PN# 1027-009-1200
REQUEST A QUOTE
AT27-017-1200 Metal side mounting clip, 8.2mm hole. Comparable to PN# 1027-017-1200
AT27-017-1200 Metal side mounting clip, 8.2mm hole. Comparable to PN# 1027-017-1200
REQUEST A QUOTE
AT60-20-0122 Size 20 Stamped & Formed Pin Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0122
AT60-20-0122 Size 20 Stamped & Formed Pin Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0122
REQUEST A QUOTE
AT60-20-0144 Size 20 Stamped & Formed Pin Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0144
AT60-20-0144 Size 20 Stamped & Formed Pin Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0144
REQUEST A QUOTE
AT60-202-20141 Size 20 Solid Machined Pin Contact,Nickel Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-20141
AT60-202-20141 Size 20 Solid Machined Pin Contact,Nickel Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-20141
REQUEST A QUOTE
AT60-202-2031 Size 20 Solid Machined Pin Contact, Gold Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-2031
AT60-202-2031 Size 20 Solid Machined Pin Contact, Gold Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-2031
REQUEST A QUOTE
AT60-202-20NKIT Size 20 Contact Kit AT60-202-20141. Pin Contacts, 20-22AWG, Nickel Plating, (10 pieces)
AT60-202-20NKIT Size 20 Contact Kit AT60-202-20141. Pin Contacts, 20-22AWG, Nickel Plating, (10 pieces)
REQUEST A QUOTE
ATM04-12PD 12-Way Receptacle, D Position, Brown. Comparable to PN# DTM04-12PD
ATM04-12PD 12-Way Receptacle, D Position, Brown. Comparable to PN# DTM04-12PD
REQUEST A QUOTE
ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003
ATM04-12PD-SF1BN 12 Position Receptacle, Pin, Keyed D, Snap-Fit End Cap, Brown Body (Requires Wedgelock AWM-12P). Comparable to PN# DTM04-12PD-E003
REQUEST A QUOTE
ATM04-12PD-SR1BN 12-Way Receptacle, Male Connector with C Position Key with Strain Relief. Comparable to PN# DTM04-12PD-E007
ATM04-12PD-SR1BN 12-Way Receptacle, Male Connector with C Position Key with Strain Relief. Comparable to PN# DTM04-12PD-E007
REQUEST A QUOTE
ATM12P-BT Boot for 12 Position Receptacles, Grey. Comparable to PN# DTM12P-BT
ATM12P-BT Boot for 12 Position Receptacles, Grey. Comparable to PN# DTM12P-BT
REQUEST A QUOTE
ATM12P-BT-BK Boot for 12 Position Receptacles, Black. Comparable to PN# DTM12P-BT-BK
ATM12P-BT-BK Boot for 12 Position Receptacles, Black. Comparable to PN# DTM12P-BT-BK
REQUEST A QUOTE
ATM12P-BT-YW Boot for 12 Position Receptacles, Yellow. Comparable to PN# DTM12P-BT-YW
ATM12P-BT-YW Boot for 12 Position Receptacles, Yellow. Comparable to PN# DTM12P-BT-YW
REQUEST A QUOTE
ATRT-100 - Contact and Wedgelock Extraction Tool
ATRT-100 - Contact and Wedgelock Extraction Tool
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-20 Size 20 Contact Adjustable Crimping Tool
AUTK-20 Size 20 Contact Adjustable Crimping Tool
REQUEST A QUOTE
