  6. ATM04-12PC-PM32 12 Position Panel Mount Receptacle with Flange, Pin, Front Mount, Gasket, Keyed C, Reduced Diameter Rear Seal, Green

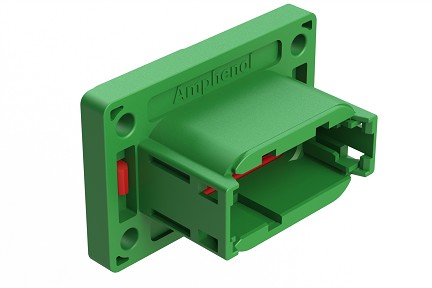

ATM04-12PC-PM32 12 Position Panel Mount Receptacle with Flange, Pin, Front Mount, Gasket, Keyed C, Reduced Diameter Rear Seal, Green
ATM04-12PC-PM32 12 Position Panel Mount Receptacle with Flange, Pin, Front Mount, Gasket, Keyed C, Reduced Diameter Rear Seal, Green

ATM04-12PC-PM32 12 Position Panel Mount Receptacle with Flange, Pin, Front Mount, Gasket, Keyed C, Reduced Diameter Rear Seal, Green

$0.00
Receptacle, Panel Mount
PART NUMBER: ATM04-12PC-PM32
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 12, C Key
  • Contact Size: 20
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included?: No
  • Amperage: 7.5A
  • Wire Range: 16-22AWG (1.5-0.35 mm²)
  • Voltage Rating: 250V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 (in mated condition)
  • Color: Green
  • Shape: Rectangular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Green
  • Rear Seal Type: Reduced Diameter
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part #: AWM-12P
  • Mating Part(s)*: ATM06-12SC* Plug
12 Position Panel Mount Receptacle with Flange, Pin, Front Mount, Gasket, Keyed C, Reduced Diameter Rear Seal, Green
