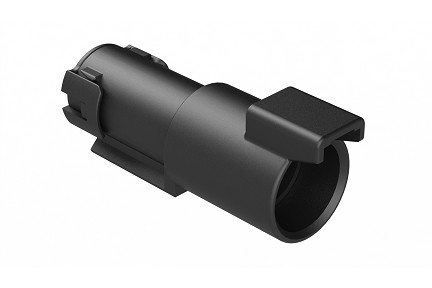

  6. ATHD04-1-12P-E003 1 Position Receptacle, Pin, Contact Size 12, Endcap. Comparable to PN# DTHD04-1-12P-E003
ATHD04-1-12P-E003 1 Position Receptacle, Pin, Contact Size 12, Endcap. Comparable to PN# DTHD04-1-12P-E003
ATHD04-1-12P-E003 1 Position Receptacle, Pin, Contact Size 12, Endcap. Comparable to PN# DTHD04-1-12P-E003

ATHD04-1-12P-E003 1 Position Receptacle, Pin, Contact Size 12, Endcap. Comparable to PN# DTHD04-1-12P-E003

$0.00
Receptacle
PART NUMBER: ATHD04-1-12P-E003
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 1
  • Contact Size: 12
  • Amperage: 25A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Wire Range: 10-14 AWG (6.0-2.0mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 500V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 3.40mm (.134") - 4.32mm (.170")
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: YES
  • Mating Part(s)*: ATHD06-1-12S* Plug
