A Series
ATHD Series
Size 12 Contact 25A / 500V

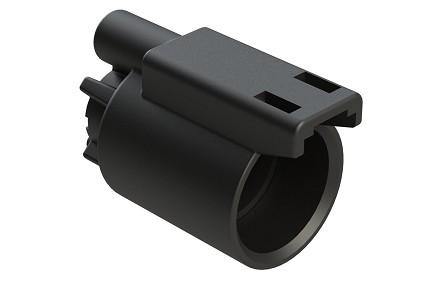

ATHD04-1-12P-BM13 Single Pole Receptacle, Pin, Size 12 Contact, Self-Threading, Tin Plated, Black
ATHD04-1-12P-BM13 Single Pole Receptacle, Pin, Size 12 Contact, Self-Threading, Tin Plated, Black
ATHD04-1-12P-BM13 Single Pole Receptacle, Pin, Size 12 Contact, Self-Threading, Tin Plated, Black
$0.00
Receptacle
PART NUMBER:
ATHD04-1-12P-BM13
Datasheet
:
View / Download
3D Model
:
View/Download
1
Circular
69
25
Plastic
SPECIFICATIONS:
No. of Positions:
1
Contact Size:
12
Contact Type (Pin/Socket):
Pin
Contacts Included:
TRUE
Gender:
Male
IP Rating:
IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Operating Temperature:
-55°C to +125°C
Color:
Black
Housing Material:
Thermoplastic
Seal Material:
Silicone Rubber
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megaohms min. @ 25°C
Mating Cycle Durability:
>100
Mating Part*:
ATHD06-1-12S* Plug
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Single Pole Receptacle, Pin, Size 12 Contact, Self-Threading, Tin Plated, Black
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments,Board-to-Board and Board-to-Cable Solutions
A Series~ATHD|A Series~BoardLock
500
Connectors~Board Mount|Connectors~Receptacles|Connectors~Pin (Male)
