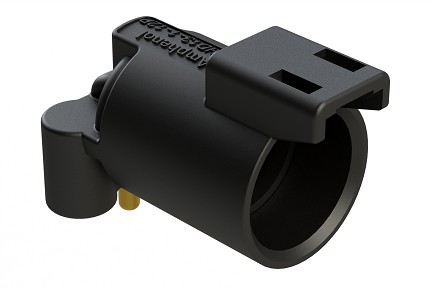

ATFHD13-1-12P-BM11 1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Gold Plated Size 12 Contact
ATFHD13-1-12P-BM11 1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Gold Plated Size 12 Contact

ATFHD13-1-12P-BM11 1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Gold Plated Size 12 Contact

$0.00
Receptacle
PART NUMBER: ATFHD13-1-12P-BM11
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 1
  • Contact Size: 12
  • Contact Type (Pin/Socket): Pin
  • Contacts Included?: TRUE
  • Gender: Male
  • Amperage: 25A
  • Housing Material: Thermoplastic
  • Voltage: 500
  • Operating Temperature: -55°C TO +125°C
  • Color: Black
  • IP Rating: IP67 (in mated condition)
  • Plating: Gold
  • Contact Material: Copper Alloy
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • RoHS Compliant (Yes/No)?: Yes
  • Mating Cycle Durability: >100
  • Mating Part*: ATHD06-1-12S* PLUG
1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Gold Plated Size 12 Contact
