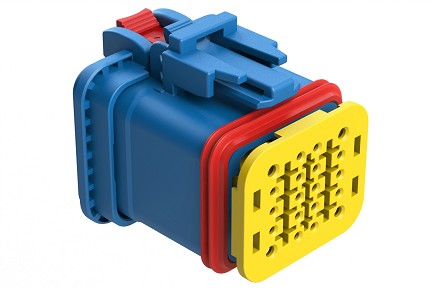

ATD06-20SD1 20 (16+4) Position Plug, Socket, Integrated Latch w Connector Position Assurance (CPA) Lock, Keyed D, Blue, End Cap, TPA Wedgelock Included. Comparable to PN# 2350890-4
ATD06-20SD1 20 (16+4) Position Plug, Socket, Integrated Latch w Connector Position Assurance (CPA) Lock, Keyed D, Blue, End Cap, TPA Wedgelock Included. Comparable to PN# 2350890-4
ATD06-20SD1 20 (16+4) Position Plug, Socket, Integrated Latch w Connector Position Assurance (CPA) Lock, Keyed D, Blue, End Cap, TPA Wedgelock Included. Comparable to PN# 2350890-4
$0.00
Plug
PART NUMBER:
ATD06-20SD1
Datasheet
:
View / Download
20
Rectangular / Other
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
7.5A, 13A
Plastic
SPECIFICATIONS:
No. of positions:
20 (16+4)
Contact Size:
16,20
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
7.5A, 13A
Wire Range:
16-22 AWG (1.3-0.3mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color:
Blue
Shape:
Rectangular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
1.35mm (.053") - 3.05mm (.120"), 1.35mm (.053") - 2.20mm (.086")
Mating Cycle Durability:
100
RoHS Complian:
Yes
Mating Part(s)*:
ATD04-20PD*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
20 (16+4) Position Plug, Socket, Integrated Latch w Connector Position Assurance (CPA) Lock, Keyed D, Blue, End Cap, TPA Wedgelock Included. Comparable to PN# 2350890-4
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~ATD
250
Connectors~Plugs|Connectors~Socket (Female)
