  5. ATD04-20PC 20 (16+4) Position Receptacle, Pin, Integrated Latch, Keyed C, Green, End Cap, TPA Wedgelock Included. Comparable to PN# 2350891-3
ATD04-20PC 20 (16+4) Position Receptacle, Pin, Integrated Latch, Keyed C, Green, End Cap, TPA Wedgelock Included. Comparable to PN# 2350891-3
ATD04-20PC 20 (16+4) Position Receptacle, Pin, Integrated Latch, Keyed C, Green, End Cap, TPA Wedgelock Included. Comparable to PN# 2350891-3

ATD04-20PC 20 (16+4) Position Receptacle, Pin, Integrated Latch, Keyed C, Green, End Cap, TPA Wedgelock Included. Comparable to PN# 2350891-3

$0.00
Receptacle
PART NUMBER: ATD04-20PC
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of positions: 20 (16+4)
  • Contact Size: 16,20
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts included: No
  • Amperage: 7.5A, 13A
  • Wire Range: 16-22 AWG (1.3-0.3mm²), 14-20 AWG (2.0-0.5mm²)
  • Voltage Rating: 250V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Color: Green
  • Shape: Rectangular
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • Seal Diameter: 1.35mm (.053") - 3.05mm (.120"), 1.35mm (.053") - 2.20mm (.086")
  • Mating Cycle Durability: 100
  • RoHS Complian: Yes
  • Mating Part(s)*: ATD06-20SC*

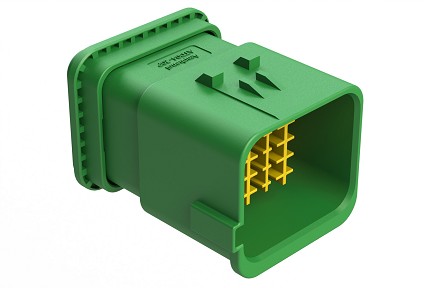

20 (16+4) Position Receptacle, Pin, Integrated Latch, Keyed C, Green, End Cap, TPA Wedgelock Included. Comparable to PN# 2350891-3
