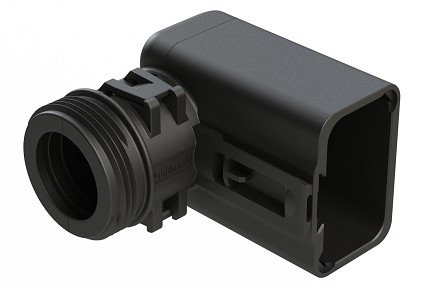

ATBS-250-1205 Backshell for 12 Position Receptacles, 90°. Cable Exit Designed for Corrugated Tube NW 10, 13 & 17. Comparable to PN# 1011-250-1205
ATBS-250-1205 Backshell for 12 Position Receptacles, 90°. Cable Exit Designed for Corrugated Tube NW 10, 13 & 17. Comparable to PN# 1011-250-1205
ATBS-250-1205 Backshell for 12 Position Receptacles, 90°. Cable Exit Designed for Corrugated Tube NW 10, 13 & 17. Comparable to PN# 1011-250-1205
$0.00
Backshell
PART NUMBER:
ATBS-250-1205
Datasheet
:
View / Download
12
Rectangular / Other
Plastic
SPECIFICATIONS:
No. of positions:
12
Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
Color:
Black
Shape:
Rectangular
RoHS Complian:
Yes
Mating Part(s)*:
AT04-12P*, All Modifications without end caps
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Backshell for 12 Position Receptacles, 90°. Cable Exit Designed for Corrugated Tube NW 10, 13 & 17. Comparable to PN# 1011-250-1205
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~AT
Accessories~Backshells
