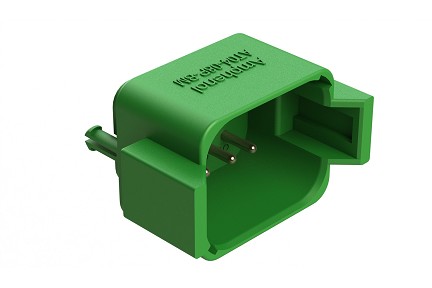

AT04-08PC-BM03 8 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, No Potting, Green
AT04-08PC-BM03 8 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, No Potting, Green
AT04-08PC-BM03 8 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, No Potting, Green
$0.00
Receptacle
PART NUMBER:
AT04-08PC-BM03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Rectangular / Other
67
13
Plastic
SPECIFICATIONS:
No. of Positions:
8
Amperage:
13A
Contact Size:
16
Contact Type (Pin/Socket):
Pin
Wire Range:
14-20 AWG (2.0-0.5mm²)
Voltage:
250 V
Contacts Included:
Yes
Color:
Green
Plating:
Nickel
IP Protection:
IP67 (mated condition)
Operating Temperature:
-55° to +125°C
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megaohms min. @ 25°C
Mating Cycle Durability:
>100
Contact Material:
Copper Alloy
Housing Material:
Thermoplastic
Mating Part(s):
AT06-08SC* PLUG
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
8 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, No Potting, Green
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments,Board-to-Board and Board-to-Cable Solutions
A Series~AT|A Series~BoardLock
Connectors~Board Mount|Connectors~Receptacles|Connectors~Pin (Male)
