DuraMate™ AHDP ISOBUS 91 Series 24-09
Plugs

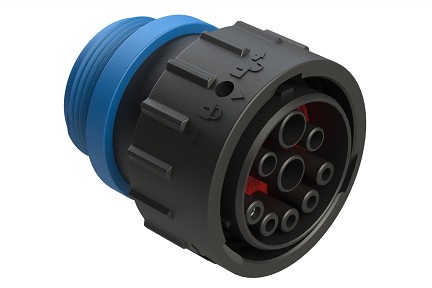

AHDP06-24-91SR-STA 9 Position Plug, Socket, ISOBUS, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-91SE-L015
AHDP06-24-91SR-STA 9 Position Plug, Socket, ISOBUS, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-91SE-L015
AHDP06-24-91SR-STA 9 Position Plug, Socket, ISOBUS, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-91SE-L015
$0.00
PART NUMBER:
AHDP06-24-91SR-STA
Datasheet
:
View / Download
9
Circular
69
60
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
9
Contact Size:
8,12,16
Contact Type (Pin/Socket):
Socket
Contacts Included:
No
Gender:
Female
Wire Range:
8-10 AWG (8.0-5.0mm²), 10-14 AWG(6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
60,25,13
Housing Material:
Thermoplastic
Volts:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
Seal Material:
Silicone Rubber
Seal Diameter:
3.43mm (.135") - 5.59mm (.220"),2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Seal Color:
Blue
Rear Seal Type:
Reduced Diameter Seal
RoHS Compliant (Yes/No):
Yes
Mating Cycle Durability:
>100
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
9 Position Plug, Socket, ISOBUS, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-91SE-L015
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments,Connection between tractor and implement
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
