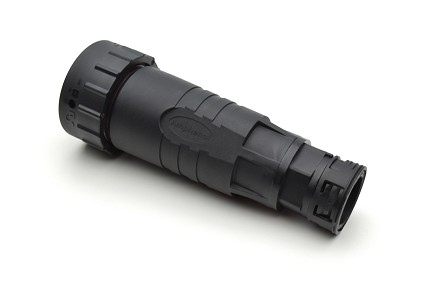

AHDP06-24-91S-BS3 Plug Connector with conduit adapter NW23-A

AHDP06-24-91S-BS3 Plug Connector with conduit adapter NW23

$0.00

Isobus Connector

PART NUMBER: AHDP06-24-91S-BS3

Datasheet:

View / Download 3D Model:

View/Download

Shell Size: 24
No. of Positions: 9
Contact Size(s): 2x #8 + 2x #12 + 5x #16 (1x bridged)
Amperage: #8: 60A / #12: 25A / #16: 13A
Contacts Included: No
Contact Type (Pin/Socket): Socket
Gender: Female
Wire Range: 2x 6/10/16mm² + 2x 2.5mm² + 4x 0.5mm²
Housing Material: Polyamide Black, UL94 V-0
Voltage Rating: 24V
Shape: Circular
Color: Black
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: -40°C to +125°C
Seal Material: NBR, Silicone
Mating Cycle Durability: >100
RoHS Compliant: Yes

QUANTITY

Description

Plug Connector with conduit adapter NW23

Downloadable Marketing Literature

DuraMate IBIC ISOBUS	DuraMate ISOBUS 91 Series	DuraMate Family

A Series Contacts	SpeedSplice

PRODUCT IMAGE DISCLAIMER: All images on this site are merely a representation of the actual part. Color, sizing, material and plating surface may differ. The best option is to request samples from the Product Manager.
