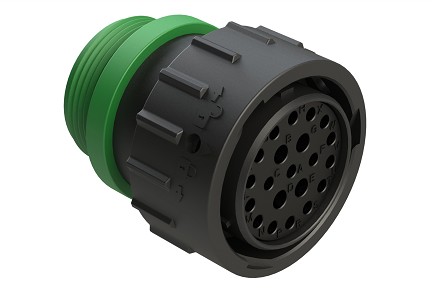

  7. AHDP06-24-21SN-STA 21 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-21SN-L015
AHDP06-24-21SN-STA 21 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-21SN-L015
AHDP06-24-21SN-STA 21 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-21SN-L015

AHDP06-24-21SN-STA 21 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-21SN-L015

$0.00
PART NUMBER: AHDP06-24-21SN-STA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 21
  • Contact Size: 12,16
  • Contact Type (Pin/Socket): Socket
  • Contacts Included: No
  • Gender: Female
  • Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5 mm²)
  • Amperage: 25,13
  • Housing Material: Thermoplastic
  • Volts: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 3.40mm (.134") - 4.32mm (.170") / 2.50mm (.100") -3.40mm (.134")
  • Seal Color: Green
  • Rear Seal Type: Normal Diameter
  • RoHS Compliant (Yes/No): Yes
  • Mating Cycle Durability: >100
  • Mating Part(s)*: AHDP02-24-21P*-XXX & AHDP04-24-21P*-XXX
21 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-21SN-L015



Related Items

A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
REQUEST A QUOTE
AHDP02-24-21PN-STA 21 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter
AHDP02-24-21PN-STA 21 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter
REQUEST A QUOTE
AHDP02-24-21PR-STA 21 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-21PR-STA 21 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
REQUEST A QUOTE
AHDP04-24-21PN-STA 21 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-21PN-L015
AHDP04-24-21PN-STA 21 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-21PN-L015
REQUEST A QUOTE
AHDP04-24-21PR-STA 21 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP24-24-21PE-L015
AHDP04-24-21PR-STA 21 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP24-24-21PE-L015
REQUEST A QUOTE
AHDP06-24-21SR-STA 21 Position Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-21SE-L015
AHDP06-24-21SR-STA 21 Position Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-21SE-L015
REQUEST A QUOTE
AHDPBS-24L015-005 Shell Size 24 Backshell for Small Thread Adapter Connectors, 2 PC, Compression Nut, Cable Diameter Range 14.5mm - 18.0mm. Comparable to PN# M902-2244,M902-2054
AHDPBS-24L015-005 Shell Size 24 Backshell for Small Thread Adapter Connectors, 2 PC, Compression Nut, Cable Diameter Range 14.5mm - 18.0mm. Comparable to PN# M902-2244,M902-2054
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
REQUEST A QUOTE
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
REQUEST A QUOTE
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
REQUEST A QUOTE
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-16141-22 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 22-24AWG,
AT62-201-16141-22 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 22-24AWG,
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-1631-22 Size 16 Machined Socket Contact, Gold Plating, 13A, Wire Range 22-24AWG
AT62-201-1631-22 Size 16 Machined Socket Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
REQUEST A QUOTE
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
REQUEST A QUOTE
AT62-203-12NKIT Size 12 Machined Contact Kit AT62-203-12141. Socket Contacts, 25A, Wire Range 12-14 AWG, Nickel Plating, (10 pieces)
AT62-203-12NKIT Size 12 Machined Contact Kit AT62-203-12141. Socket Contacts, 25A, Wire Range 12-14 AWG, Nickel Plating, (10 pieces)
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
