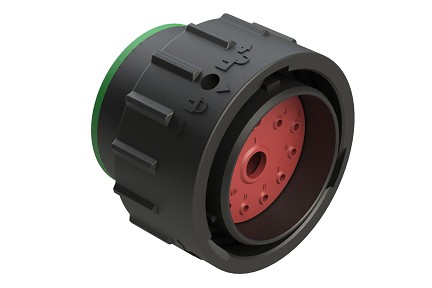

AHDP06-24-14PN-SRA 14 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green), Smooth Ring Adapter. Comparable to PN# HDP26-24-14PN
AHDP06-24-14PN-SRA 14 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green), Smooth Ring Adapter. Comparable to PN# HDP26-24-14PN

AHDP06-24-14PN-SRA 14 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green), Smooth Ring Adapter. Comparable to PN# HDP26-24-14PN

$0.00
Plug
PART NUMBER: AHDP06-24-14PN-SRA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: 24
  • No. of Positions: 14
  • Contact Size: 4,12,16
  • Contact Type (Pin/Socket): Pin
  • Contacts Included: FALSE
  • Gender: Male
  • Wire Range: 6 AWG (16.0-13.0mm²), 10-14 AWG (6.0-2.0mm²),14-20 AWG (2.0-0.5mm²)
  • Amperage: 100, 25, 13
  • Housing Material: Thermoplastic
  • Volts: 250
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP67 & IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63 mm (.261 in) - 7.41 mm (.292 in), 3.43 mm (.135 in) - 4.32 mm (.170 in), 2.54 mm (.100 in) - 3.40 mm (.134 in)
  • Seal Color: Green
  • Rear Seal Type: Normal Diameter
  • RoHS Compliant (Yes/No): TRUE
  • Mating Cycle Durability: 100
  • Mating Part*: AHDP06-24-14P*
14 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green), Smooth Ring Adapter. Comparable to PN# HDP26-24-14PN
