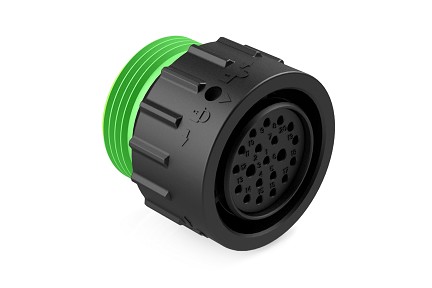

AHDP06-18-20SN-WTA Size 18 Plug with 20 positions, socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-20SN-L024
AHDP06-18-20SN-WTA Size 18 Plug with 20 positions, socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-20SN-L024
AHDP06-18-20SN-WTA Size 18 Plug with 20 positions, socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-20SN-L024
$0.00
Plug
PART NUMBER:
AHDP06-18-20SN-WTA
Datasheet
:
View / Download
3D Model
:
View/Download
20
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
20
Contact Size(s):
16,20
Contacts Included:
No
Contact Type (Pin/Socket):
Socket
Gender:
Female (Standard)
Wire Range:
16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Circular
Color:
Black
IP Rating:
IP67 & IP69k (in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
1.02mm (.040") - 2.10mm (.083") / 2.54mm (.100") - 3.40mm (.134")
Seal Color:
Red
Rear Seal Type:
Normal Diameter Seal
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part(s)*:
AHDP04-18-20P* & AHDP02-18-20P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Size 18 Plug with 20 positions, socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-20SN-L024
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
Connectors~Plugs|Connectors~Socket (Female)
Related Items
AHDC06-18 Size 18 Protective Cap for Receptacles. Comparable to PN# HDC26-18
REQUEST A QUOTE
AHDP02-18-20PN-SRA 20 positions, sealed panel mount receptacle, pin, size 18, normal seal, smooth ring adapter
REQUEST A QUOTE
AHDP02-18-20PR-SRA 20 Position Sealed Panel Mount Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter
REQUEST A QUOTE
AHDP04-18-20PN-SRA Size 18 receptacle, 20 positions, pin, standard arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP24-18-20PN
REQUEST A QUOTE
AHDP04-18-20PN-WTA Size 18 Receptacle with 20 positions, in, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP24-18-20PN-L024
REQUEST A QUOTE
AHDP04-18-20PR-SRA 20 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-18-20PE
REQUEST A QUOTE
AHDP04-18-20PR-WTA 20 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-18-20PE-L024
REQUEST A QUOTE
AHDP-16-04978 Rubber Flange Seal, shell size 18. Comparable to PN# 16-04978
REQUEST A QUOTE
AHDP18-PN01 Panel Nut, shell size 18. Comparable to PN# 2411-002-1805
REQUEST A QUOTE
AHDPBS-015-1805 Size 18 Backshell, conduit snap over right angle 90°
REQUEST A QUOTE
AHDPBS-016-1805 Size 18 Backshell, conduit snap over straight, 180°. Comparable to PN# 2428-016-1805
REQUEST A QUOTE
AHDPBS-18-001 Backshell, WTA, shell size 18. Tie-wrap holes. Comparable to PN# 2428-025-1805
REQUEST A QUOTE
AHDPBS-18-002 Backshell, WTA, 2pc, Shell size 18 with compression nut
REQUEST A QUOTE
AHDPBS-18-SM01 Size 18 Sealed Backshell
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
REQUEST A QUOTE
AT14-002-1886 Metal Lockwasher, Shell size 18. Comparable to PN# 2414-002-1886
REQUEST A QUOTE
AT62-005-20141 Size 20 Solid Machined Socket Contact, Nickel Plating, 7.5A, Wire Range 16-18AWG. Comparable to PN# 0462-005-20141
REQUEST A QUOTE
AT62-005-2031 Size 20 Solid Machined Socket Contact, Gold Plating, 7.5A, Wire Range 16-18AWG. Comparable to PN# 0462-005-2031
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-20-0122 Size 20 Stamped & Formed Socket Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1062-20-0122
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-16141-22 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 22-24AWG,
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-1631-22 Size 16 Machined Socket Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
