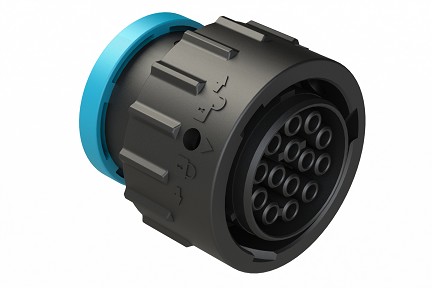

AHDP06-18-14SR-CL20 14 Positions, Plug, Socket, Shell Size

AHDP06-18-14SR-CL20 14 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on), Datalink Key. Comparable to PN# HDP26-18-14SE-CL20

$0.00

Plug

PART NUMBER: AHDP06-18-14SR-CL20

Datasheet:

View / Download

Size: 18
No. of Positions: 14
Contact Size(s): 16
Contact Type (Pin/Socket): Socket
Contacts Included?: FALSE
Gender: Female (Standard)
Wire Range: 14-20 AWG (2.0-0.5mm²)
Amperage: 13A
Housing Material: Thermoplastic
Voltage: 250 V
Operating Temperature: -55°C to +125°C
Color: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
Insulation Resistance: 1000 Megaohm min @ 25°C
Seal Material: Silicone Rubber
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Seal Color: Blue
Rear Seal Type: Reduced diameter seal
RoHS Compliant?: TRUE
Mating Cycle Durability: >100
Mating Part*: AHDP04-24-14PR-C041

QUANTITY

Description

14 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on), Datalink Key. Comparable to PN# HDP26-18-14SE-CL20

A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000

AHDP06-18-14SR-CL20 14 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on), Datalink Key. Comparable to PN# HDP26-18-14SE-CL20
