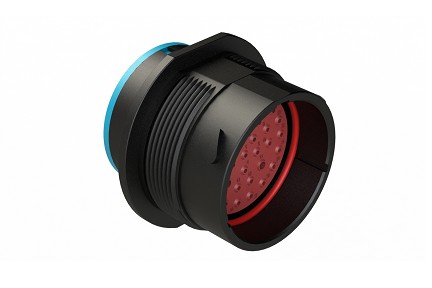

AHDP04-24-35PR-SRA 35 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dustcap Included. Comparable to PN# HDP24-24-35PE
AHDP04-24-35PR-SRA 35 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dustcap Included. Comparable to PN# HDP24-24-35PE
AHDP04-24-35PR-SRA 35 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dustcap Included. Comparable to PN# HDP24-24-35PE
$0.00
receptacle
PART NUMBER:
AHDP04-24-35PR-SRA
Datasheet
:
View / Download
3D Model
:
View/Download
35
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
35
Contact Size(s):
16,20
Amperage:
13A, 7.5A
Contacts Included:
No
Contact Type (Pin/Socket):
Pin
Gender:
Male (Standard)
Wire Range:
16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Circular
Color:
Black
IP Rating:
IP67 & IP69k (in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
1.35mm (.053") - 3.05mm (.120") / 1.02mm (.040") - 2.41mm (.095")
Seal Color:
Red
Rear Seal Type:
Reduced Diameter Seal
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part(s)*:
AHDP06-24-35S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
35 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dustcap Included. Comparable to PN# HDP24-24-35PE
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
