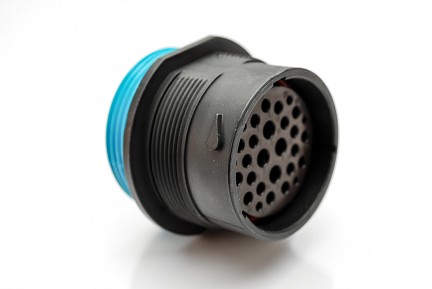

AHDP04-24-29SR-WTA 29 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29SE-L024
AHDP04-24-29SR-WTA 29 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29SE-L024
AHDP04-24-29SR-WTA 29 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29SE-L024
$0.00
Receptacle
PART NUMBER:
AHDP04-24-29SR-WTA
Datasheet
:
View / Download
3D Model
:
View/Download
29
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
29
Contact Size:
12,16,20
Contact Type (Pin/Socket):
Socket
Wire Range:
16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Gender:
Female (Reversed)
Housing Material:
Thermoplastic
Color:
Black
Rear Seal Type:
Reduced Diameter Seal
Seal Color:
Blue
Seal Diameter:
1.02mm (.040") - 2.10mm (.083") / 1.35mm (.053") - 2.62mm (.103") / 2.46mm (.097") - 4.01mm (.158")
Seal Material:
Silicone Rubber
Operating Temperature:
-55°C to +125°C
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-24-29P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
29 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29SE-L024
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
Connectors~Receptacles|Connectors~Socket (Female)
