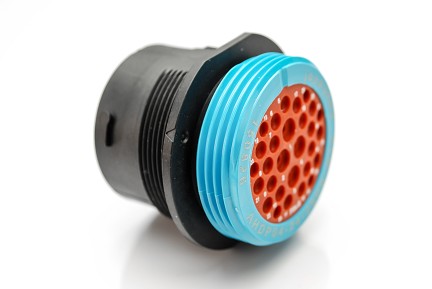

AHDP04-24-29PR-WTA 29 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29PE-L024
AHDP04-24-29PR-WTA 29 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29PE-L024
AHDP04-24-29PR-WTA 29 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29PE-L024
$0.00
Receptacle
PART NUMBER:
AHDP04-24-29PR-WTA
Datasheet
:
View / Download
3D Model
:
View/Download
29
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
29
Contact Size:
12,16,20
Contact Type (Pin/Socket):
Pin
Wire Range:
14-20 AWG (2.0-0.5mm²)
Gender:
Male (Standard)
Housing Material:
Thermoplastic
Color:
Black
Rear Seal Type:
Reduced Diameter Seal
Seal Color:
Blue
Seal Diameter:
1.02mm (.040") - 2.10mm (.083") / 1.35mm (.053") - 2.62mm (.103") / 2.46mm (.097") - 4.01mm (.158")
Seal Material:
Silicone Rubber
Operating Temperature:
-55°C to +125°C
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-24-29S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
29 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-29PE-L024
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
Connectors~Receptacles|Connectors~Pin (Male)|Connectors~Reduced Diameter Seal
Related Items
AHDC06-24 Size 24, Receptacle cap, threaded and sealed. Comparable to PN# HDC26-24
REQUEST A QUOTE
AHDP06-24-29SR-SRA 29 Position Plug, Socket Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP26-24-29SE
REQUEST A QUOTE
AHDP06-24-29SR-WTA 29 Position Plug, Socket Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP26-24-29SE-L024
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDP24-PN01 Panel Nut Shell, Size 24, Comparable to PN# 2411-001-2405
REQUEST A QUOTE
AHDPBS-010-2405 Size 24 Backshell, Conduit snap over straight. Comparable to PN# 2428-010-2405
REQUEST A QUOTE
AHDPBS-011-2405 Size 24 Backshell, Conduit snap over right angle. Comparable to PN# 2428-004-2405
REQUEST A QUOTE
AHDPBS-0406-001 Size 24 Backshell WTA. Comparable to PN# 2428-024-2405
REQUEST A QUOTE
AHDPBS-0406-002 Size 24 Backshell WTA 2 PC. Cable diameter range: .57-.71”. Comparable to PN# M902-2244
REQUEST A QUOTE
AHDPBS-0406-003 Size 24 Backshell WTA 2 PC. Cable diameter range: .76-.95” (19.5mm - 24.1mm)
REQUEST A QUOTE
AHDPBS-0406-SM01 Size 24 Backshell sealed with cable grommet
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
REQUEST A QUOTE
AT14-001-2486 Metal Lock Washer, Size 24. Comparable to PN# 2414-001-2486
REQUEST A QUOTE
AT60-12-0144 - Stamped & Formed Gold-Plated Male Contact, Size 12. Comparable to PN# 1060-12-0144
REQUEST A QUOTE
AT60-12-0166 - Stamped & Formed Nickel-Plated Male Contact, Size 12. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0222 Size 12 Stamped & Formed Contact, Nickel plated. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0244 Size 12 Stamped & Formed Contact, Gold plated. Comparable to PN# 1060-12-1044
REQUEST A QUOTE
AT60-14-0122 Nickel-Plated Male Contact, Stamped & Formed, Size 16, 14-18AWG, 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 - Stamped & Formed Gold-Plated Male Contact, Size 16, 14-18AWG. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Nickel-Plated Male Stamped & Formed Contact, Size 16, 16-18 AWG 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 - Stamped & Formed Gold-Plated Male Contact, Size 16. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Nickel-Plated Male Stamped & Formed Contact, Size 16, 16-20AWG 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 - Stamped & Formed Gold-Plated Male Contact, Size 16. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0822 Size 16 stamped pin contact, nickel plated
REQUEST A QUOTE
AT60-16-0844 Size 16 stamped pin contact, gold plated
REQUEST A QUOTE
AT60-202-16141 Nickel-Plated Male Machined Contact, Size 16, 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-16141-22 Size 16 male solid machined contact, crimp, 22-24 AWG, nickel plated
REQUEST A QUOTE
AT60-202-1631 Gold-Plated Male Machined Contact, Size 16, 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-204-12141 - Solid Machined Nickel-Plated Male Contact, Size 12. Comparable to PN# 0460-204-12141
REQUEST A QUOTE
AT60-204-12NKIT Contact kit AT60-204-12141. Pin Contacts nickel plated, 10 PCS
REQUEST A QUOTE
AT60-220-1231 - Solid Machined Gold-Plated Male Contact, Size 12, Comparable to PN# 0460-220-1231
REQUEST A QUOTE
