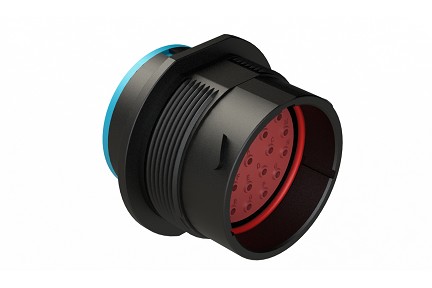

  7. AHDP04-24-23PR-SRA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-23PE
AHDP04-24-23PR-SRA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-23PE
AHDP04-24-23PR-SRA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-23PE

AHDP04-24-23PR-SRA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-23PE

$0.00
receptacle
PART NUMBER: AHDP04-24-23PR-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 23
  • Contact Size: 16
  • Amperage: 13A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male (Standard)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
  • Seal Color: Red
  • Rear Seal Type: Reduced Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP06-24-23S*
23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-23PE



Related Items

AHDC06-24 Size 24, Receptacle cap, threaded and sealed. Comparable to PN# HDC26-24
AHDC06-24 Size 24, Receptacle cap, threaded and sealed. Comparable to PN# HDC26-24
REQUEST A QUOTE
AHDP04-24-23PN-BRA 23 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP24-24-23PN-L017
AHDP04-24-23PN-BRA 23 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP24-24-23PN-L017
REQUEST A QUOTE
AHDP04-24-23PN-SRA Size 24 receptacle, 23 positions, pin, standard arrangement, normal seal, smooth ring adapter, , dustcap included. Comparable to PN# HDP24-24-23PN
AHDP04-24-23PN-SRA Size 24 receptacle, 23 positions, pin, standard arrangement, normal seal, smooth ring adapter, , dustcap included. Comparable to PN# HDP24-24-23PN
REQUEST A QUOTE
AHDP04-24-23PN-WTA Size 24 Receptacle with 23 positions, Pin, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP24-24-23PN-L024
AHDP04-24-23PN-WTA Size 24 Receptacle with 23 positions, Pin, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP24-24-23PN-L024
REQUEST A QUOTE
AHDP04-24-23PR-BRA 23 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP24-24-23PE-L017
AHDP04-24-23PR-BRA 23 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP24-24-23PE-L017
REQUEST A QUOTE
AHDP04-24-23PR-WTA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-23PE-L024
AHDP04-24-23PR-WTA 23 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-23PE-L024
REQUEST A QUOTE
AHDP04-24-23PT-SRA 23 Position Receptacle, Pin, Shell Size 24, Plastic, Thin Diameter Seal, Smooth Ring Adapter. Comparable to PN# HDP24-24-23PT
AHDP04-24-23PT-SRA 23 Position Receptacle, Pin, Shell Size 24, Plastic, Thin Diameter Seal, Smooth Ring Adapter. Comparable to PN# HDP24-24-23PT
REQUEST A QUOTE
AHDP04-24-23PT-WTA 23 Position Receptacle, Pin, Shell Size 24, Plastic, Thin Diameter Seal, Wide Thread Adapter
AHDP04-24-23PT-WTA 23 Position Receptacle, Pin, Shell Size 24, Plastic, Thin Diameter Seal, Wide Thread Adapter
REQUEST A QUOTE
AHDP06-24-23SN-BRA 23 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-23SN-L017
AHDP06-24-23SN-BRA 23 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-23SN-L017
REQUEST A QUOTE
AHDP06-24-23SN-SRA Size 24 plug, 23 positions, socket, standard arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP26-24-23SN
AHDP06-24-23SN-SRA Size 24 plug, 23 positions, socket, standard arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP26-24-23SN
REQUEST A QUOTE
AHDP06-24-23SN-WTA Size 24 Plug with 23 positions, Socket, standard arrangement, normal seal, wide thread adapter.Comparable to PN# HDP26-24-23SN-L024
AHDP06-24-23SN-WTA Size 24 Plug with 23 positions, Socket, standard arrangement, normal seal, wide thread adapter.Comparable to PN# HDP26-24-23SN-L024
REQUEST A QUOTE
AHDP06-24-23SR-BRA 23 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-23SE-L017
AHDP06-24-23SR-BRA 23 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-23SE-L017
REQUEST A QUOTE
AHDP06-24-23SR-SRA 23 Position Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP26-24-23SE
AHDP06-24-23SR-SRA 23 Position Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP26-24-23SE
REQUEST A QUOTE
AHDP06-24-23SR-WTA 23 Position Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP26-24-23SE-L024
AHDP06-24-23SR-WTA 23 Position Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP26-24-23SE-L024
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDP24-PN01 Panel Nut Shell, Size 24, Comparable to PN# 2411-001-2405
AHDP24-PN01 Panel Nut Shell, Size 24, Comparable to PN# 2411-001-2405
REQUEST A QUOTE
AHDPBS-010-2405 Size 24 Backshell, Conduit snap over straight. Comparable to PN# 2428-010-2405
AHDPBS-010-2405 Size 24 Backshell, Conduit snap over straight. Comparable to PN# 2428-010-2405
REQUEST A QUOTE
AHDPBS-011-2405 Size 24 Backshell, Conduit snap over right angle. Comparable to PN# 2428-004-2405
AHDPBS-011-2405 Size 24 Backshell, Conduit snap over right angle. Comparable to PN# 2428-004-2405
REQUEST A QUOTE
AHDPBS-0406-001 Size 24 Backshell WTA. Comparable to PN# 2428-024-2405
AHDPBS-0406-001 Size 24 Backshell WTA. Comparable to PN# 2428-024-2405
REQUEST A QUOTE
AHDPBS-0406-002 Size 24 Backshell WTA 2 PC. Cable diameter range: .57-.71”
AHDPBS-0406-002 Size 24 Backshell WTA 2 PC. Cable diameter range: .57-.71”
REQUEST A QUOTE
AHDPBS-0406-003 Size 24 Backshell WTA 2 PC. Cable diameter range: .76-.95” (19.5mm - 24.1mm)
AHDPBS-0406-003 Size 24 Backshell WTA 2 PC. Cable diameter range: .76-.95” (19.5mm - 24.1mm)
REQUEST A QUOTE
AHDPBS-0406-SM01 Size 24 Backshell sealed with cable grommet
AHDPBS-0406-SM01 Size 24 Backshell sealed with cable grommet
REQUEST A QUOTE
AHDPM24-BT Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-24BT
AHDPM24-BT Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-24BT
REQUEST A QUOTE
AHDPM24-BT-BK Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-BK
AHDPM24-BT-BK Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-BK
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT14-001-2486 Metal Lock Washer, Size 24. Comparable to PN# 2414-001-2486
AT14-001-2486 Metal Lock Washer, Size 24. Comparable to PN# 2414-001-2486
REQUEST A QUOTE
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-16141-22 Size 16 Machined Pin Contact, Nickel Pated, 13A, Wire Range 22-24AWG
AT60-202-16141-22 Size 16 Machined Pin Contact, Nickel Pated, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-202-1631-22 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 22-24AWG
AT60-202-1631-22 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
REQUEST A QUOTE
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
REQUEST A QUOTE
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
