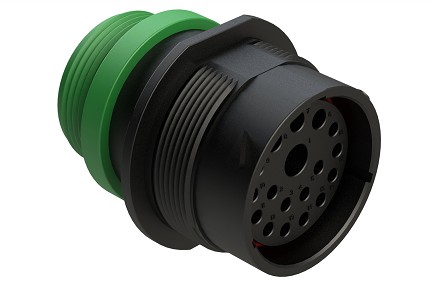

AHDP04-24-18SN-STA 18 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-18SN-L015
AHDP04-24-18SN-STA 18 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-18SN-L015
AHDP04-24-18SN-STA 18 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-18SN-L015
$0.00
PART NUMBER:
AHDP04-24-18SN-STA
Datasheet
:
View / Download
18
Circular
69
60
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
18
Contact Size:
8,12,16
Contact Type (Pin/Socket):
Socket
Contacts Included:
No
Gender:
Female
Wire Range:
8-10 AWG (8.0-5.0mm²), 10-14 AWG(6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
60,25,13
Housing Material:
Thermoplastic
Volts:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
Seal Material:
Silicone Rubber
Seal Diameter:
4.83mm (.190") - 6.10mm (.240") / 3.43mm (.135") - 4.32mm (.170") / 2.50mm (.100") - 3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal Diameter
RoHS Compliant (Yes/No):
Yes
Mating Cycle Durability:
>100
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
18 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP24-24-18SN-L015
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
