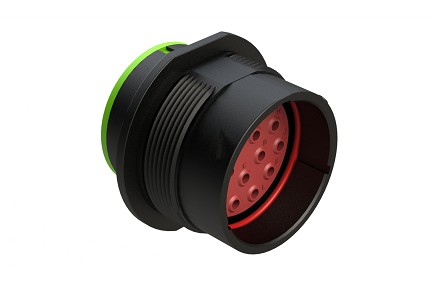

  7. AHDP04-24-16PN-SRA 16 Position Receptacle, Size 24, Pin, Standard Arrangement, Normal Seal, Smooth Ring Adapter.Comparable to PN# HDP24-24-16PN
AHDP04-24-16PN-SRA 16 Position Receptacle, Size 24, Pin, Standard Arrangement, Normal Seal, Smooth Ring Adapter.Comparable to PN# HDP24-24-16PN
AHDP04-24-16PN-SRA 16 Position Receptacle, Size 24, Pin, Standard Arrangement, Normal Seal, Smooth Ring Adapter.Comparable to PN# HDP24-24-16PN

AHDP04-24-16PN-SRA 16 Position Receptacle, Size 24, Pin, Standard Arrangement, Normal Seal, Smooth Ring Adapter.Comparable to PN# HDP24-24-16PN

$0.00
Receptacle
PART NUMBER: AHDP04-24-16PN-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 16
  • Contact Size: 12
  • Amperage: 25A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Wire Range: 10-14 AWG (6.0-2.0mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 3.40mm (.134") - 4.32mm (.170")
  • Seal Color: Red
  • Rear Seal Type: Normal Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP06-24-16S*
