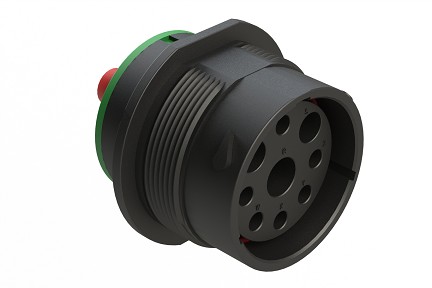

AHDP04-24-09SN-SRA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. Comparable to PN#HDP24-24-9SN
AHDP04-24-09SN-SRA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. Comparable to PN#HDP24-24-9SN
AHDP04-24-09SN-SRA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. Comparable to PN#HDP24-24-9SN
$0.00
Receptacle
PART NUMBER:
AHDP04-24-09SN-SRA
Datasheet
:
View / Download
9
Circular
69
100
Plastic
SPECIFICATIONS:
No. of Positions:
9
Contact Size:
4,8,12
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Shell Size:
24
Wire Range:
6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
Amperage:
100,60,25
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color:
Black
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
Seal Material:
Silicone Rubber
Seal Diameter:
6.63 mm (.261") - 7.42 mm (.292"), 4.83 mm (.190") - 6.10 mm (.240"), 3.43 mm (.135") - 4.32 mm (.170")
Rear Seal Type:
Normal seal diameter
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part*:
AHDP06-24-09P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. Comparable to PN#HDP24-24-9SN
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
Related Items
AHDC06-24 Size 24, Receptacle cap, threaded and sealed. Comparable to PN# HDC26-24
REQUEST A QUOTE
AHDC06-24-T Size 24 Protective Cap for Receptacle, With Cord Grip
REQUEST A QUOTE
AHDP04-24-09SN-BRA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter. Comparable to PN#HDP24-24-9SN-L017
REQUEST A QUOTE
AHDP04-24-09SN-STA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Small Thread Adapter. Comparable to PN#HDP24-24-9SN-L015
REQUEST A QUOTE
AHDP04-24-09SN-WTA 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
REQUEST A QUOTE
AHDP04-24-09SR-SRA 9 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dustcap Included. Comparable to PN# HDP24-24-9SE
REQUEST A QUOTE
AHDP06-24-09PN-SRA 9 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. Comparable to PN#HDP26-24-9PN
REQUEST A QUOTE
AHDP06-24-09PR-SRA 9 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP26-24-9PE
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDP24-PN01 Panel Nut Shell, Size 24, Comparable to PN# 2411-001-2405
REQUEST A QUOTE
AHDPBS-011-2405 Size 24 Backshell, Conduit snap over right angle. Comparable to PN# 2428-004-2405
REQUEST A QUOTE
AHDPBS-0406-SM01 Size 24 Backshell sealed with cable grommet
REQUEST A QUOTE
AHDPM24-BT Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-24BT
REQUEST A QUOTE
AHDPM24-BT-BK Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-BK
REQUEST A QUOTE
AHDPM24-BT-RA Shell Size 24 90° Rubber Boot, for DuraMate AHDP (SRA only) & AHDM,PVC, Grey. Comparable to PN# HD30-18BT-90-BK
REQUEST A QUOTE
AHDPM24-BT-RA-BK Size 24 90° Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-90-BK
REQUEST A QUOTE
AHDPSCC-24 Self- closing Protective Cap, Size 24, Black. Comparable to PN# 5004-001-2405
REQUEST A QUOTE
AT11-001-3.6M Contact Removal Tool, Plastic, Size 8 (3.6 mm). Comparable to PN# 0411-337-1205
REQUEST A QUOTE
AT11-027-0405 Contact removal tool, Size 4, 4 AWG. Comparable to PN# 0411-027-0405
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT114008 Contact removal tool, Size 8, 8-10 AWG. Comparable to PN# 114008
REQUEST A QUOTE
AT114009 Contact removal tool, Size 4, 6 AWG. Comparable to PN# 114009
REQUEST A QUOTE
AT14-001-2486 Metal Lock Washer, Size 24. Comparable to PN# 2414-001-2486
REQUEST A QUOTE
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
REQUEST A QUOTE
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
REQUEST A QUOTE
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
REQUEST A QUOTE
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
REQUEST A QUOTE
AT62-12-0277 Size 12 Female Stamped & Formed Contact, Tin-plated, Wire Range 10-12AWG, 2000 pcs. Reel
REQUEST A QUOTE
AT62-203-04141 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 6AWG. Comparable to PN# 0462-203-04141
REQUEST A QUOTE
AT62-203-04141-4 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 4AWG. Comparable to PN# 5962-203-04141
REQUEST A QUOTE
AT62-203-08141 Size 8 Machined Socket Contact, Nickel Plating, 60A, Wire Range 8-10AWG. Comparable to PN# 0462-203-08141
REQUEST A QUOTE
AT62-203-08141-16 Size 8 Machined Socket Contact, Nickel Plating, 60A , Wire Range 6AWG
REQUEST A QUOTE
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
REQUEST A QUOTE
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
REQUEST A QUOTE
ATT-12-00 - Contact Crimp Tool, S&F, Size 12, 12-14AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
ATT-1612-03 - Contact Crimp Tool, S&F, Size 12/16, 14AWG/20AWG/22AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
MFX-3973 - Size 12 Crimp Die for Stamped and Formed Contacts
REQUEST A QUOTE
SC000346 3.6mm Machined Radsok Socket Contact, Silver Plating, 80A, Wire Range 7-10 AWG
REQUEST A QUOTE
SC000379 3.6 mm Solid Machined Socket Contact, Nickel Plating, 60A, Wire Range 8-10 AWG
REQUEST A QUOTE
WA23-10 Contact Locater, Size 8
REQUEST A QUOTE
WA23-11 Contact Locater, Size 4
REQUEST A QUOTE
WA23-138DA Die Assembly for Heavy Duty Pneumatic Crimp Tool, Size 4
REQUEST A QUOTE
WA23-2 Die Assembly for CA-5E12 Heavy Duty Pneumatic Crimp Tool, Size 8
REQUEST A QUOTE
