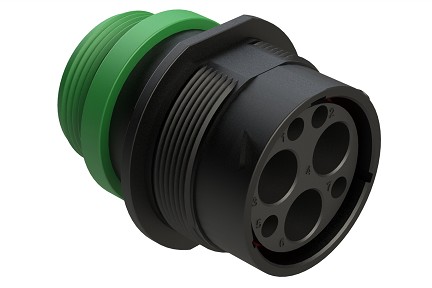

  7. AHDP04-24-07PN-STACL22 7 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), CL22, Small Thread Adapter
AHDP04-24-07PN-STACL22 7 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), CL22, Small Thread Adapter
AHDP04-24-07PN-STACL22 7 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), CL22, Small Thread Adapter

AHDP04-24-07PN-STACL22 7 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), CL22, Small Thread Adapter

$0.00
PART NUMBER: AHDP04-24-07PN-STACL22
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 7
  • Contact Size: 4,16
  • Contact Type (Pin/Socket): Pin
  • Contacts Included: No
  • Gender: Male
  • Wire Range: 6 AWG (16.0-13.0mm²), 14-20 AWG (2.0-0.5mm²)
  • Amperage: 100,13
  • Housing Material: Thermoplastic
  • Volts: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") -3.40mm (.134")
  • Seal Color: Green
  • Rear Seal Type: Normal Diameter
  • RoHS Compliant (Yes/No): Yes
  • Mating Cycle Durability: >100
