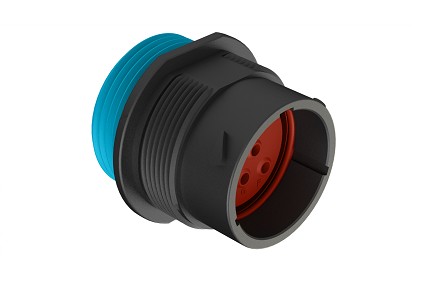

AHDP04-18-08PR-WTA 8 Position Receptacle, Pin, Shell Size 1

AHDP04-18-08PR-WTA 8 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-18-8PE-L024

$0.00

Connectors

PART NUMBER: AHDP04-18-08PR-WTA

Datasheet:

View / Download 3D Model:

View/Download

Shell Size: 18
No. of Positions: 8
Contact Size: 12
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male (Standard)
Wire Range: 10-14 AWG (6.0-2.0mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Circular
Color: Black
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Rubber
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Seal Color: Red
Rear Seal Type: Reduced Diameter Seal
Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
RoHS Compliant: Yes
Mating Part(s)*: AHDP06-18-08S*

QUANTITY

8 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-18-8PE-L024

AHDP04-18-08PR-WTA 8 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-18-8PE-L024
