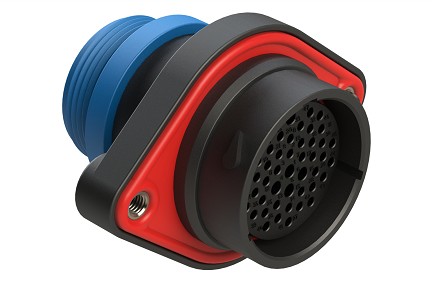

  7. AHDP02-24-47SR-STA 47 Position Panel Mount Receptacle, Socket,Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-47SR-STA 47 Position Panel Mount Receptacle, Socket,Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-47SR-STA 47 Position Panel Mount Receptacle, Socket,Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter

AHDP02-24-47SR-STA 47 Position Panel Mount Receptacle, Socket,Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter

$0.00
PART NUMBER: AHDP02-24-47SR-STA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 47
  • Contact Size: 16,20
  • Contact Type (Pin/Socket): Socket
  • Contacts Included: No
  • Gender: Female
  • Wire Range: 14-20 AWG (2.0-0.5mm²), 16-22 AWG(1.5-0.35mm²)
  • Amperage: 13,7.5
  • Housing Material: Thermoplastic
  • Volts: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.35mm (.053") - 2.62mm (.103") / 1.02mm (.040") - 2.10mm (.083")
  • Seal Color: Blue
  • Rear Seal Type: Reduced Diameter
  • RoHS Compliant (Yes/No): Yes
  • Mating Cycle Durability: >100
47 Position Panel Mount Receptacle, Socket,Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
