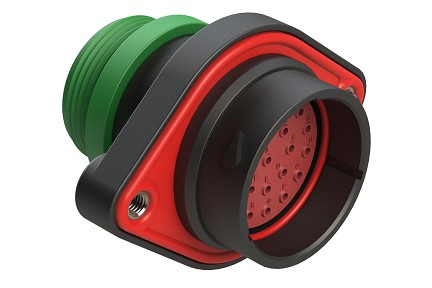

  7. AHDP02-24-23PN-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter
AHDP02-24-23PN-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter
AHDP02-24-23PN-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter

AHDP02-24-23PN-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter

$0.00
PART NUMBER: AHDP02-24-23PN-STA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 23
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Contacts Included: No
  • Gender: Male
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Amperage: 13
  • Housing Material: Thermoplastic
  • Volts: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 2.54 mm (.100") -3.40 mm (.134")
  • Seal Color: Green
  • Rear Seal Type: Normal Diameter
  • RoHS Compliant (Yes/No): Yes
  • Mating Cycle Durability: >100
23 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter



Related Items

A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
REQUEST A QUOTE
AHDP02-24-23PR-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-23PR-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
REQUEST A QUOTE
AHDP02-24-23PT-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Thin Diameter Seal (Grey), Small Thread Adapter
AHDP02-24-23PT-STA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Thin Diameter Seal (Grey), Small Thread Adapter
REQUEST A QUOTE
AHDP06-24-23SN-STA 23 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-23SN-L015
AHDP06-24-23SN-STA 23 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green), Small Thread Adapter. Comparable to PN# HDP26-24-23SN-L015
REQUEST A QUOTE
AHDP06-24-23SR-STA 23 Position Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-23SE-L015
AHDP06-24-23SR-STA 23 Position Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter. Comparable to PN# HDP26-24-23SE-L015
REQUEST A QUOTE
AHDP06-24-23ST-STA 23 Position Plug, Socket, Shell Size 24, Thin Diameter Seal (Grey), Small Thread Adapter. Comparable to PN# HDP26-24-23ST-L015
AHDP06-24-23ST-STA 23 Position Plug, Socket, Shell Size 24, Thin Diameter Seal (Grey), Small Thread Adapter. Comparable to PN# HDP26-24-23ST-L015
REQUEST A QUOTE
AHDPBS-24L015-005 Shell Size 24 Backshell for Small Thread Adapter Connectors, 2 PC, Compression Nut, Cable Diameter Range 14.5mm - 18.0mm. Comparable to PN# M902-2244,M902-2054
AHDPBS-24L015-005 Shell Size 24 Backshell for Small Thread Adapter Connectors, 2 PC, Compression Nut, Cable Diameter Range 14.5mm - 18.0mm. Comparable to PN# M902-2244,M902-2054
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-16141-22 Size 16 Machined Pin Contact, Nickel Pated, 13A, Wire Range 22-24AWG
AT60-202-16141-22 Size 16 Machined Pin Contact, Nickel Pated, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-202-1631-22 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 22-24AWG
AT60-202-1631-22 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
REQUEST A QUOTE
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
REQUEST A QUOTE
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
