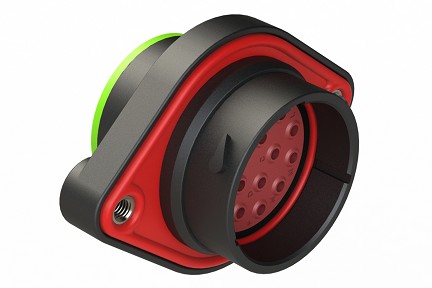

Panel Mount Receptacle
PART NUMBER: AHDP02-24-16PN-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Size: 24
  • No. of Contacts: 16
  • Contacts Included: FALSE
  • Contact Size: 12
  • Contact Type (Pin/Socket): Pin
  • Gender: Male (Standard)
  • Wire Range: 10-14 AWG (5.0-2.0mm²)
  • Amperage: 25A
  • Volts: 250 V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Green
  • Rear Seal Type: Normal
  • RoHS Compliant: YES
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP06-24-16S*
16 positions, sealed panel mount receptacle, pin, size 24, normal seal, smooth ring adapter
