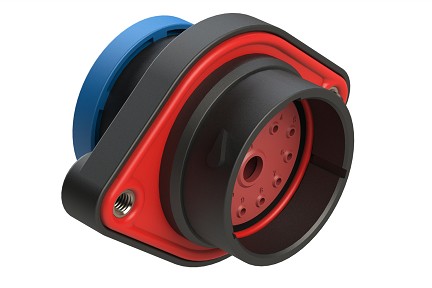

AHDP02-24-14PR-BRA 14 Position Panel Mount Receptacle, Pin, Shell Size 24, Backshell Ring Adapter
AHDP02-24-14PR-BRA 14 Position Panel Mount Receptacle, Pin, Shell Size 24, Backshell Ring Adapter

AHDP02-24-14PR-BRA 14 Position Panel Mount Receptacle, Pin, Shell Size 24, Backshell Ring Adapter

$0.00
Receptacle
PART NUMBER: AHDP02-24-14PR-BRA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: 24
  • No. of Positions: 14
  • Contact Size: 4,12,16
  • Contact Type (Pin/Socket): Pin
  • Contacts Included: FALSE
  • Gender: Male
  • Wire Range: 6 AWG (16.0-13.0mm²), 10-14 AWG (6.0-2.0mm²),14-20 AWG (2.0-0.5mm²)
  • Amperage: 100, 25, 13
  • Housing Material: Thermoplastic
  • Volts: 250
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition)IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63 mm (.261 in) - 7.41 mm (.292 in), 2.46 mm (.135 in) - 4.01 mm (.158 in), 1.35 mm (.053 in) - 3.05 mm (.120 in)
  • Seal Color: Blue
  • Rear Seal Type: Reduced Diameter
  • RoHS Compliant (Yes/No): TRUE
  • Mating Cycle Durability: 100
  • Mating Part*: AHDP06-24-14S*
14 Position Panel Mount Receptacle, Pin, Shell Size 24, Backshell Ring Adapter
