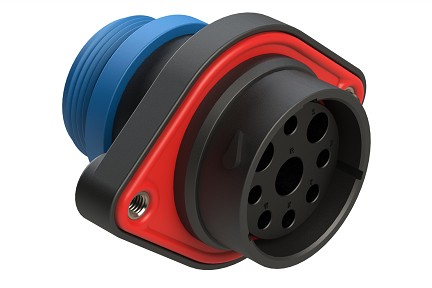

  7. AHDP02-24-09SR-STA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-09SR-STA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
AHDP02-24-09SR-STA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter

AHDP02-24-09SR-STA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter

$0.00
PART NUMBER: AHDP02-24-09SR-STA
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 9
  • Contact Size: 4,8,12
  • Contact Type (Pin/Socket): Socket
  • Contacts Included: No
  • Gender: Female
  • Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG(6.0-2.0mm²)
  • Amperage: 100,60,25
  • Housing Material: Thermoplastic
  • Volts: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63mm (.261") -7.42mm (.292") / 3.43mm (.135") - 5.59mm (.220") / 2.46mm (.097") - 4.01mm (.158")
  • Seal Color: Blue
  • Rear Seal Type: Reduced Diameter
  • RoHS Compliant (Yes/No): Yes
  • Mating Cycle Durability: >100
9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter
