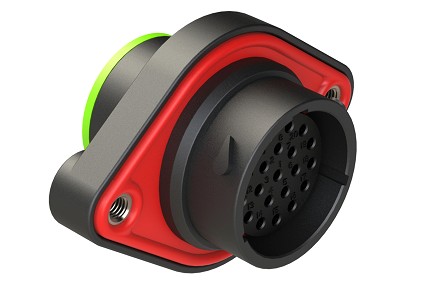

  7. AHDP02-18-21SN-SRA 21 positions, sealed panel mount receptacle, socket, reversed arrangement, size 18, normal seal, smooth ring adapter
AHDP02-18-21SN-SRA 21 positions, sealed panel mount receptacle, socket, reversed arrangement, size 18, normal seal, smooth ring adapter
AHDP02-18-21SN-SRA 21 positions, sealed panel mount receptacle, socket, reversed arrangement, size 18, normal seal, smooth ring adapter

AHDP02-18-21SN-SRA 21 positions, sealed panel mount receptacle, socket, reversed arrangement, size 18, normal seal, smooth ring adapter

$0.00
Panel Mount Receptacle
PART NUMBER: AHDP02-18-21SN-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Size: 18
  • No. of Contacts: 21
  • Contacts Included: FALSE
  • Contact Size: 20
  • Contact Type (Pin/Socket): Socket
  • Gender: Female (Reversed)
  • Wire Range: 16-22 AWG (1.5-0.5mm²)
  • Amperage: 7.5A
  • Volts: 250 V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Green
  • Rear Seal Type: Normal
  • RoHS Compliant: YES
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP06-18-21P*
21 positions, sealed panel mount receptacle, socket, reversed arrangement, size 18, normal seal, smooth ring adapter
