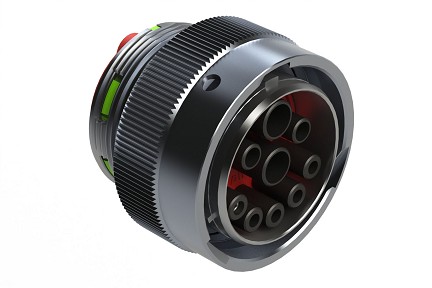

  8. AHDM06-24-91SN 9 Position ISOBUS Plug, Size 24, Socket Contacts, Normal Diameter Seal, Wide Thread Adapter (WTA). Comparable to PN# HDB36-24-91SN
AHDM06-24-91SN 9 Position ISOBUS Plug, Size 24, Socket Contacts, Normal Diameter Seal, Wide Thread Adapter (WTA). Comparable to PN# HDB36-24-91SN
AHDM06-24-91SN 9 Position ISOBUS Plug, Size 24, Socket Contacts, Normal Diameter Seal, Wide Thread Adapter (WTA). Comparable to PN# HDB36-24-91SN

AHDM06-24-91SN 9 Position ISOBUS Plug, Size 24, Socket Contacts, Normal Diameter Seal, Wide Thread Adapter (WTA). Comparable to PN# HDB36-24-91SN

$0.00
Plug
PART NUMBER: AHDM06-24-91SN
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 9
  • Contact Size: 8,12,16
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Wire Range: 8-10 AWG (8.0-5.0mm²), 10-14 AWG(6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
  • Amperage: 60A, 25A, 13A
  • Housing Material: Thermoplastic
  • Voltage: 250
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP67 & IP69k (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 4.83mm (.190") - 6.10mm (.240"),3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
  • RoHS Compliant (Yes/No)?: Yes
  • Mating Cycle Durability: >100
  • Mating Part*: AHDM04-24-91P* & AHDM07-24-91P* RECEPTACLES
9 Position ISOBUS Plug, Size 24, Socket Contacts, Normal Diameter Seal,  Wide Thread Adapter (WTA). Comparable to PN# HDB36-24-91SN
