  7. AHDM06-24-31ST-059 Plug Kit, shell size 24, 31 positions, socket, thin seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31ST-059

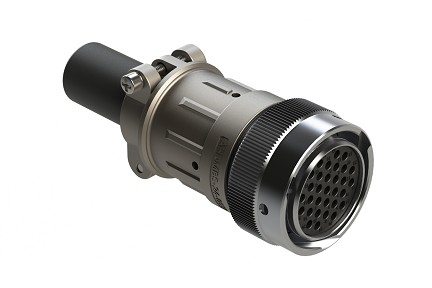

AHDM06-24-31ST-059 Plug Kit, shell size 24, 31 positions, socket, thin seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31ST-059
AHDM06-24-31ST-059 Plug Kit, shell size 24, 31 positions, socket, thin seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31ST-059

AHDM06-24-31ST-059 Plug Kit, shell size 24, 31 positions, socket, thin seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31ST-059

$0.00
Plug Kit
PART NUMBER: AHDM06-24-31ST-059
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 31
  • Contacts Included?: No
  • Contact Size: 16
  • Contact Type (Pin/Socket): Socket
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Amperage: 13 A
  • Housing Material: Zinc Alloy, Nickel Plated
  • Voltage: 200 V
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP67 / IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
  • RoHS Compliant: TRUE
  • Mating Cycle Durability: >100
  • Mating Part(s): AHDM04-24-31PR, AHDM04-24-31PT
Plug Kit, shell size 24, 31 positions, socket, thin seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31ST-059



Related Items

A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC34-24 Protective cap for Plug, AHDM Series, SIZE 24. Comparable to PN# HDC34-24
AHDC34-24 Protective cap for Plug, AHDM Series, SIZE 24. Comparable to PN# HDC34-24
REQUEST A QUOTE
AHDM04-24-31PR Receptacle, Size 24, 31 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD34-24-31PE
AHDM04-24-31PR Receptacle, Size 24, 31 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD34-24-31PE
REQUEST A QUOTE
AHDM04-24-31PR-059 Receptacle Kit, shell size 24, 31 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-31PE-059
AHDM04-24-31PR-059 Receptacle Kit, shell size 24, 31 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-31PE-059
REQUEST A QUOTE
AHDM04-24-31PR-072 31 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-31PE-072
AHDM04-24-31PR-072 31 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-31PE-072
REQUEST A QUOTE
AHDM04-24-31PR-L005 31 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-31PE-L005
AHDM04-24-31PR-L005 31 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-31PE-L005
REQUEST A QUOTE
AHDM04-24-31PT Receptacle, Size 24, 31 positions, Pin,thin seal, wIde thread. Comparable to PN# HD34-24-31PT
AHDM04-24-31PT Receptacle, Size 24, 31 positions, Pin,thin seal, wIde thread. Comparable to PN# HD34-24-31PT
REQUEST A QUOTE
AHDM04-24-31PT-059 Receptacle Kit, shell size 24, 31 positions, pin,thin seal, wIde thread, cable clamp backshell. Comparable to PN# HD34-24-31PT-059
AHDM04-24-31PT-059 Receptacle Kit, shell size 24, 31 positions, pin,thin seal, wIde thread, cable clamp backshell. Comparable to PN# HD34-24-31PT-059
REQUEST A QUOTE
AHDM04-24-31PT-072 31 Position Receptacle, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-31PT-072
AHDM04-24-31PT-072 31 Position Receptacle, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-31PT-072
REQUEST A QUOTE
AHDM04-24-31PT-L005 31 Position Receptacle, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-31PT-L005
AHDM04-24-31PT-L005 31 Position Receptacle, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-31PT-L005
REQUEST A QUOTE
AHDM06-24-31SR Plug, Size 24, 31 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD36-24-31SE
AHDM06-24-31SR Plug, Size 24, 31 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD36-24-31SE
REQUEST A QUOTE
AHDM06-24-31SR-059 Plug Kit, shell size 24, 31 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31SE-059
AHDM06-24-31SR-059 Plug Kit, shell size 24, 31 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-31SE-059
REQUEST A QUOTE
AHDM06-24-31SR-072 31 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-31SE-072
AHDM06-24-31SR-072 31 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-31SE-072
REQUEST A QUOTE
AHDM06-24-31SR-L005 31 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-31SE-L005
AHDM06-24-31SR-L005 31 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-31SE-L005
REQUEST A QUOTE
AHDM06-24-31ST Plug, Size 24, 31 positions, Socket, thin seal, wide thread. Comparable to PN# HD36-24-31ST
AHDM06-24-31ST Plug, Size 24, 31 positions, Socket, thin seal, wide thread. Comparable to PN# HD36-24-31ST
REQUEST A QUOTE
AHDM06-24-31ST-072 31 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-31ST-072
AHDM06-24-31ST-072 31 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-31ST-072
REQUEST A QUOTE
AHDM06-24-31ST-L005 31 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-31ST-L005
AHDM06-24-31ST-L005 31 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-31ST-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0622 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0622
AT62-16-0622 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0622
REQUEST A QUOTE
AT62-16-0644 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0644
AT62-16-0644 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0644
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
