Home
Our Product Lines
A Series
DuraMate Series
DuraMate AHDM
Duramate AHDM 24-23

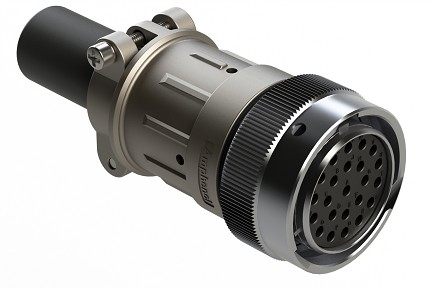

AHDM06-24-23ST-059 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD36-24-23ST-059
AHDM06-24-23ST-059 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD36-24-23ST-059
AHDM06-24-23ST-059 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD36-24-23ST-059
$0.00
Receptacle
PART NUMBER:
AHDM06-24-23ST-059
Datasheet
:
View / Download
23
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
23
Contact Size:
16
Contact Type (Pin/Socket):
Socket
Gender:
Female (Standard)
Wire Range:
14-20 AWG (2.0-0.5mm²)
Amperage:
13 A
Housing Material:
Zinc Alloy, Nickel Plated
Voltage:
250 V
Operating Temperature:
-55°C to +125° C
IP Rating:
IP67 / IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
2.23mm (.088") - 2.69mm (.106")
Seal Color:
Grey
Rear Seal Type:
Thin Seal
RoHS Compliant:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP04-24-23P* & AHDP02-24-23P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD36-24-23ST-059
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)|Connectors
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC04-24 Protective cap for plugs, Size 24
REQUEST A QUOTE
AHDC04-24-PM Size 24, Plug cap, threaded and sealed
REQUEST A QUOTE
AHDC04-24-PMT Size 24, Plug cap, threaded and sealed with tether
REQUEST A QUOTE
AHDC04-24-T Size 24, Plug cap, threaded and sealed with tether
REQUEST A QUOTE
AHDC34-24 Protective cap for Plug, AHDM Series, SIZE 24. Comparable to PN# HDC34-24
REQUEST A QUOTE
AHDM04-24-23PN Receptacle, Size 24, 23 positions, Pin, standard seal, wide thread. Comparable to PN# HD34-24-23PN
REQUEST A QUOTE
AHDM04-24-23PN-059 Receptacle Kit, shell size 24, 23 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-23PN-059
REQUEST A QUOTE
AHDM04-24-23PN-072 23 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23PN-072
REQUEST A QUOTE
AHDM04-24-23PN-L005 23 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23PN-L005
REQUEST A QUOTE
AHDM04-24-23PR Receptacle, Size 24, 23 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD34-24-23PE
REQUEST A QUOTE
AHDM04-24-23PR-059 Receptacle Kit, shell size 24, 23 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-23PE-059
REQUEST A QUOTE
AHDM04-24-23PR-072 23 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23PE-072
REQUEST A QUOTE
AHDM04-24-23PR-L005 23 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23PE-L005
REQUEST A QUOTE
AHDM04-24-23PT 23 Position Receptacle, Pin, Shell Size 24, Metal, Thin Diameter Seal. Comparable to PN# HD34-24-23PT
REQUEST A QUOTE
AHDM04-24-23PT-059 23 Position Receptacle, Pin, Shell Size 24, Metal, Thin Diameter Seal (Grey), Cable Clamp Backshell. Comparable to PN# HD34-24-23PT-059
REQUEST A QUOTE
AHDM04-24-23PT-072 23 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23PT-072
REQUEST A QUOTE
AHDM04-24-23PT-L005 23 Position Receptacle, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23PT-L005
REQUEST A QUOTE
AHDM06-24-23SN Plug, Size 24, 23 positions, Socket, standard seal, wide thread. Comparable to PN# HD36-24-23SN
REQUEST A QUOTE
AHDM06-24-23SN-059 Plug Kit, shell size 24, 23 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-23SN-059
REQUEST A QUOTE
AHDM06-24-23SN-072 23 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23SN-072
REQUEST A QUOTE
AHDM06-24-23SN-L005 23 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23SN-L005
REQUEST A QUOTE
AHDM06-24-23SR Plug, Size 24, 23 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD36-24-23SE
REQUEST A QUOTE
AHDM06-24-23SR-059 Plug Kit, shell size 24, 23 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-23SE-059
REQUEST A QUOTE
AHDM06-24-23SR-072 23 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23SE-072
REQUEST A QUOTE
AHDM06-24-23SR-L005 23 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23SE-L005
REQUEST A QUOTE
AHDM06-24-23ST 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey). Comparable to PN# HD36-24-23ST
REQUEST A QUOTE
AHDM06-24-23ST-072 23 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23ST-072
REQUEST A QUOTE
AHDM06-24-23ST-L005 23 Position Plug, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23ST-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-16141-22 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 22-24AWG,
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-1631-22 Size 16 Machined Socket Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
