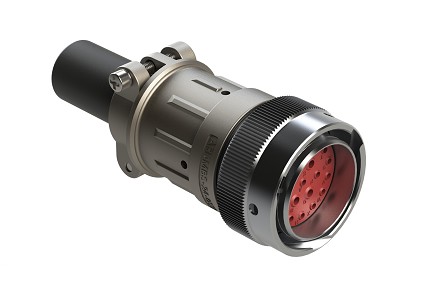

AHDM06-24-21PN-059 Plug Kit, shell size 24, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21PN-059
AHDM06-24-21PN-059 Plug Kit, shell size 24, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21PN-059

AHDM06-24-21PN-059 Plug Kit, shell size 24, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21PN-059

$0.00
Plug Kit
PART NUMBER: AHDM06-24-21PN-059
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 21
  • Contacts Included?: No
  • Contact Size: 12,16
  • Contact Type (Pin/Socket): Pin
  • Wire Range: 10-14 AWG, 14-20 AWG
  • Amperage: 25 A, 13 A
  • Housing Material: Zinc Alloy, Nickel Plated
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP67 / IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
  • RoHS Compliant: TRUE
  • Mating Cycle Durability: >100
  • Mating Part(s): AHDM04-24-21SN, AHDM04-24-21SR
Plug Kit, shell size 24, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21PN-059
