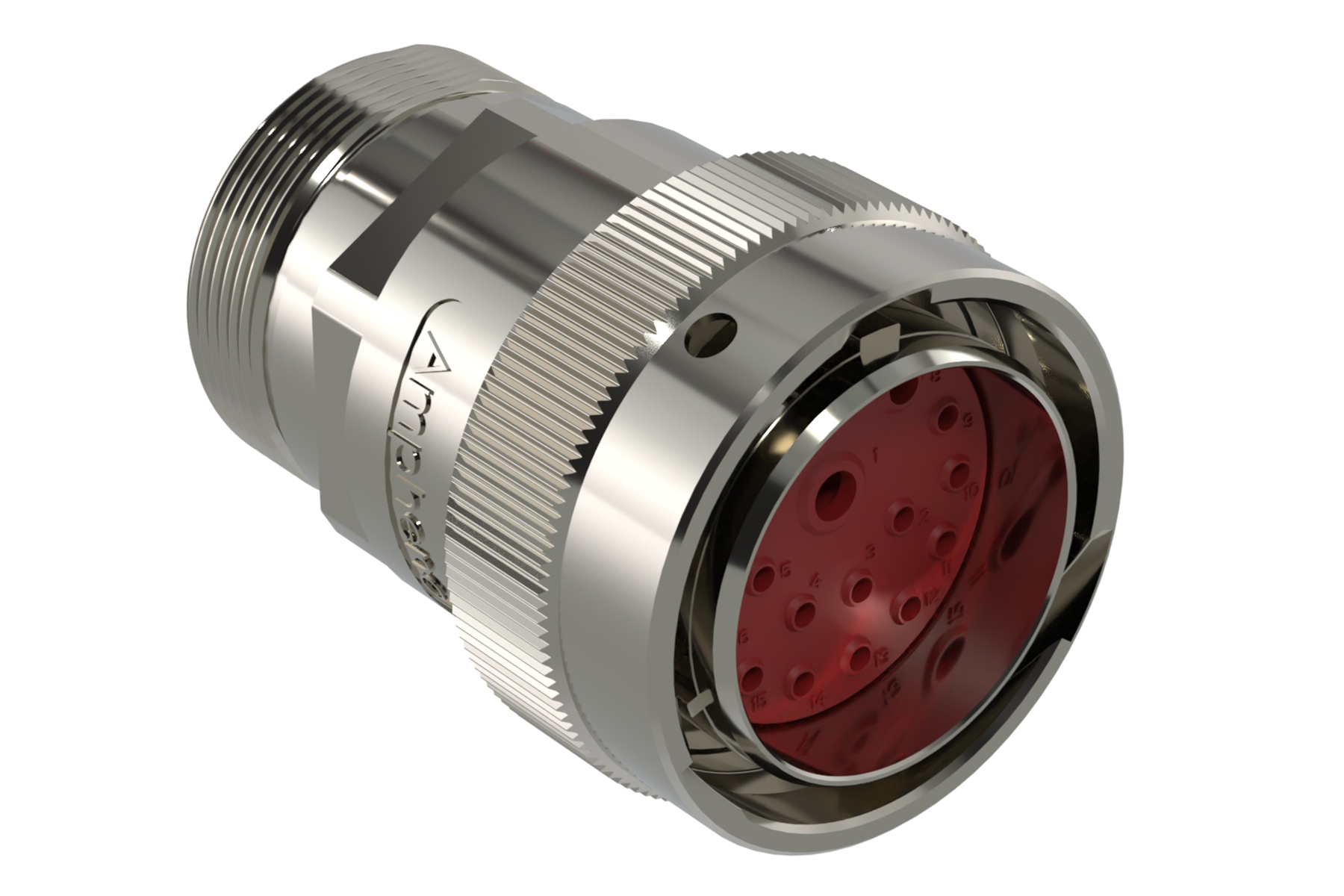

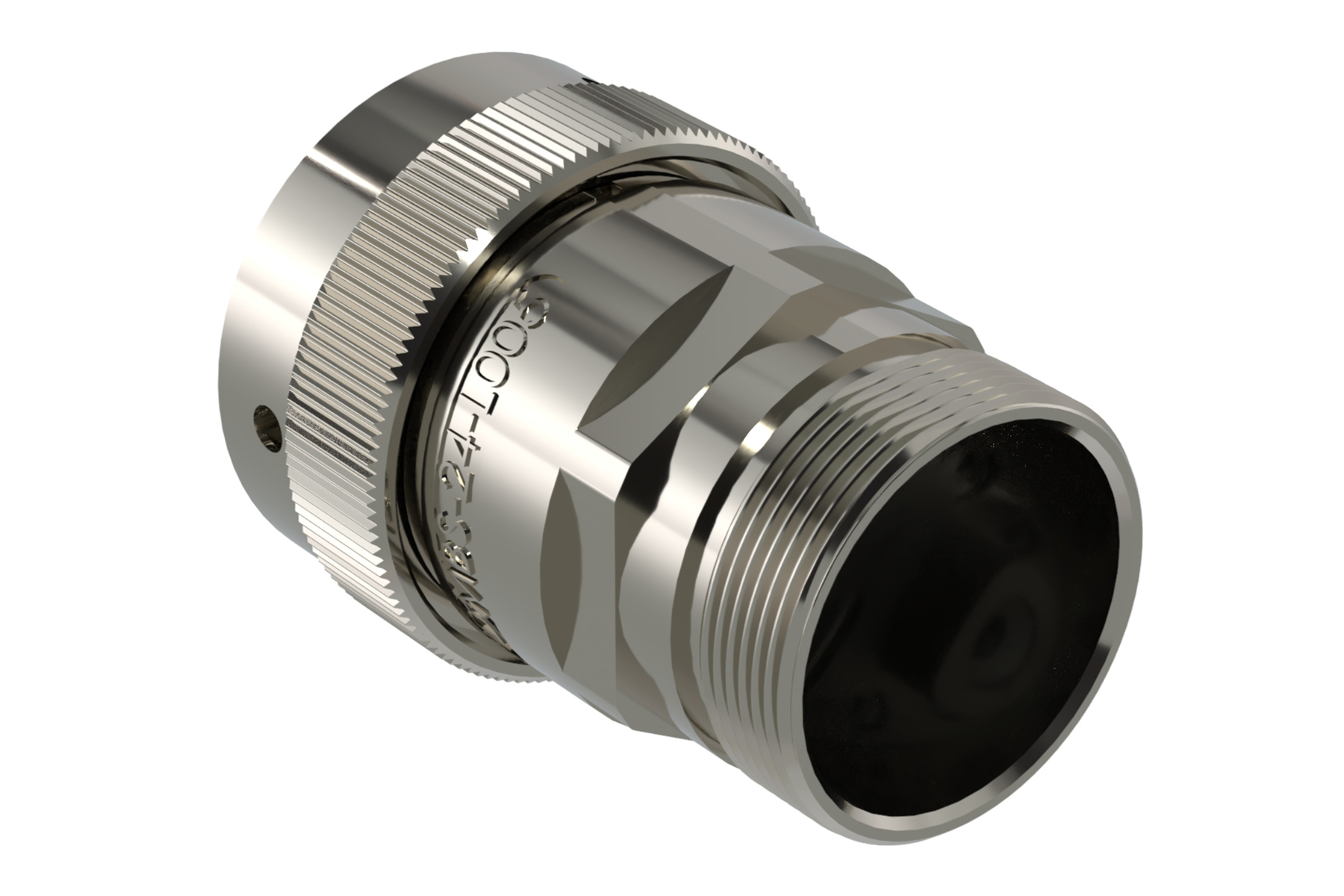

AHDM06-24-18PR-L005 18 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-18PE-L005
AHDM06-24-18PR-L005 18 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-18PE-L005
AHDM06-24-18PR-L005 18 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-18PE-L005
$0.00
Plug
PART NUMBER:
AHDM06-24-18PR-L005
Datasheet
:
View / Download
18
Circular
69
60
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
18
Contact Size:
8,12,16
Contact Type (Pin/Socket):
Pin
Gender:
Male
Contacts Included:
No
Amperage:
60A, 13A, 7.5A
Wire Range:
8-10 AWG (8.0-5.0mm²), 10-14 AWG(6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
3.43mm (.135") - 5.59mm (.220"), 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-24-18S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
18 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-18PE-L005
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Pin (Male)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
A114018 Blank Seal Plug, Size 8, 8-10 AWG. Comparable to PN #114018
REQUEST A QUOTE
AHDC34-24 Protective cap for Plug, AHDM Series, SIZE 24. Comparable to PN# HDC34-24
REQUEST A QUOTE
AHDM04-24-18SN Receptacle, Size 24, 18 positions, Socket, standard seal, wide thread. Comparable to PN# HD34-24-18SN
REQUEST A QUOTE
AHDM04-24-18SN-059 Receptacle Kit, shell size 24, 18 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-18SN-059
REQUEST A QUOTE
AHDM04-24-18SN-072 8 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-18SN-072
REQUEST A QUOTE
AHDM04-24-18SN-L005 8 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-18SN-L005
REQUEST A QUOTE
AHDM04-24-18SR Receptacle, Size 24, 18 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD34-24-18SE
REQUEST A QUOTE
AHDM04-24-18SR-059 Receptacle Kit, shell size 24, 18 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-18SE-059
REQUEST A QUOTE
AHDM04-24-18SR-072 8 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-18SE-072
REQUEST A QUOTE
AHDM04-24-18SR-L005 8 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-18SE-L005
REQUEST A QUOTE
AHDM06-24-18PN Plug, Size 24, 18 positions, Pin, standard seal, wide thread. Comparable to HD36-24-18PN. Comparable to PN# HD36-24-18PN
REQUEST A QUOTE
AHDM06-24-18PN-059 Plug Kit, shell size 24, 18 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-18PN-059
REQUEST A QUOTE
AHDM06-24-18PN-072 18 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-18PN-072
REQUEST A QUOTE
AHDM06-24-18PN-L005 18 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-18PN-L005
REQUEST A QUOTE
AHDM06-24-18PR Plug, Size 24, 18 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD36-24-18PE
REQUEST A QUOTE
AHDM06-24-18PR-059 Plug Kit, shell size 24, 18 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-18PE-059
REQUEST A QUOTE
AHDM06-24-18PR-072 18 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-18PE-072
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-001-3.6M Contact Removal Tool, Plastic, Size 8 (3.6 mm). Comparable to PN# 0411-337-1205
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT114008 Contact removal tool, Size 8, 8-10 AWG. Comparable to PN# 114008
REQUEST A QUOTE
AT60-12-0144 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0144
REQUEST A QUOTE
AT60-12-0166 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0222 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0244 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-1044
REQUEST A QUOTE
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-204-12141 Size 12 Machined Pin Contact, Nickel Plating, Wire Range 12-14AWG. Comparable to PN# 0460-204-12141
REQUEST A QUOTE
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
REQUEST A QUOTE
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
REQUEST A QUOTE
AT60-220-1231 Size 12 Machined Pin Contact, Gold Plating, 25A , Wire Range 12-14AWG. Comparable to PN# 0460-220-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
WA23-10 Contact Locater, Size 8
REQUEST A QUOTE
WA23-2 Die Assembly for CA-5E12 Heavy Duty Pneumatic Crimp Tool, Size 8
REQUEST A QUOTE
