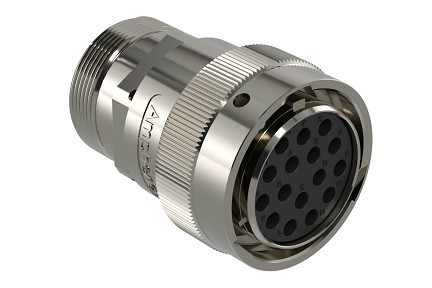

AHDM06-24-16SN-072 16 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-16SN-072
AHDM06-24-16SN-072 16 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-16SN-072
AHDM06-24-16SN-072 16 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-16SN-072
$0.00
Plug
PART NUMBER:
AHDM06-24-16SN-072
Datasheet
:
View / Download
16
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
16
Contact Size:
12
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
25A
Wire Range:
10-14 AWG (6.0-2.0mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
3.40mm (.134") - 4.32mm (.170")
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-24-16P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
16 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-16SN-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC34-24 Protective cap for Plug, AHDM Series, SIZE 24. Comparable to PN# HDC34-24
REQUEST A QUOTE
AHDC36-24 Protective cap for RECEPTACLE, AHDM Series, SIZE 24. Comparable to PN# HDC36-24
REQUEST A QUOTE
AHDM04-24-16PN Receptacle, shell size 24, 16 positions, pin, standard seal, wide thread. Comparable to PN# HD34-24-16PN
REQUEST A QUOTE
AHDM04-24-16PN-059 Receptacle Kit, shell size 24, 16 positions, pin,standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-16PN-059
REQUEST A QUOTE
AHDM04-24-16PN-072 6 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-16PN-072
REQUEST A QUOTE
AHDM04-24-16PN-L005 6 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-16PN-L005
REQUEST A QUOTE
AHDM04-24-16PR Receptacle, shell size 24, 16 positions, pin,reduced diameter seal, wide thread. Comparable to PN# HD34-24-16PE
REQUEST A QUOTE
AHDM04-24-16PR-059 Receptacle Kit, shell size 24, 16 positions, pin,reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-16PE-059
REQUEST A QUOTE
AHDM04-24-16PR-072 6 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-16PE-072
REQUEST A QUOTE
AHDM04-24-16PR-L005 6 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-16PE-L005
REQUEST A QUOTE
AHDM06-24-16SN Plug, shell size 24, 16 positions, socket, standard seal, wide thread. Comparable to PN# HD36-24-16SN
REQUEST A QUOTE
AHDM06-24-16SN-059 Plug Kit, Shell size 24, 16 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-16SN-059
REQUEST A QUOTE
AHDM06-24-16SN-L005 16 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-16SN-L005
REQUEST A QUOTE
AHDM06-24-16SR Plug, shell size 24, 16 positions, socket, reduced diameter seal, wide thread. Comparable to PN# HD36-24-16SE
REQUEST A QUOTE
AHDM06-24-16SR-059 Plug Kit, Shell size 24, 16 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-16SE-059
REQUEST A QUOTE
AHDM06-24-16SR-072 16 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-16SE-072
REQUEST A QUOTE
AHDM06-24-16SR-L005 16 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-16SE-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
REQUEST A QUOTE
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
REQUEST A QUOTE
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
REQUEST A QUOTE
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
REQUEST A QUOTE
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
REQUEST A QUOTE
AT62-203-12141-10 Size 12 Machined Socket Contact, Nickel Plating, 25A, 10-12AWG
REQUEST A QUOTE
AT62-203-12NKIT Size 12 Machined Contact Kit AT62-203-12141. Socket Contacts, 25A, Wire Range 12-14 AWG, Nickel Plating, (10 pieces)
REQUEST A QUOTE
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
