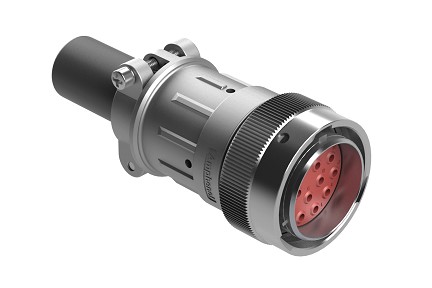

  7. AHDM06-24-16PN-059 Plug Kit, Shell size 24, 16 Positions, Pin Standard Seal, Wide Thread, Cable Clamp Backshell. Comparable to PN# HD36-24-16PN-059
AHDM06-24-16PN-059 Plug Kit, Shell size 24, 16 Positions, Pin Standard Seal, Wide Thread, Cable Clamp Backshell. Comparable to PN# HD36-24-16PN-059
AHDM06-24-16PN-059 Plug Kit, Shell size 24, 16 Positions, Pin Standard Seal, Wide Thread, Cable Clamp Backshell. Comparable to PN# HD36-24-16PN-059

AHDM06-24-16PN-059 Plug Kit, Shell size 24, 16 Positions, Pin Standard Seal, Wide Thread, Cable Clamp Backshell. Comparable to PN# HD36-24-16PN-059

$0.00
Plug Kit
PART NUMBER: AHDM06-24-16PN-059
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 16
  • Contact Size: 12
  • Amperage: 25A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Male (Reversed)
  • Wire Range: 10-14 AWG (6.0-2.0mm²)
  • Housing Material: Zinc Alloy, Nickel Plated
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 3.40mm (.134") - 4.32mm (.170")
  • Seal Color: Red
  • Rear Seal Type: Normal Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: YES
  • Mating Part(s)*: AHDM04-24-16S*
Plug Kit, Shell size 24, 16 Positions, Pin Standard Seal, Wide Thread, Cable Clamp Backshell. Comparable to PN# HD36-24-16PN-059
