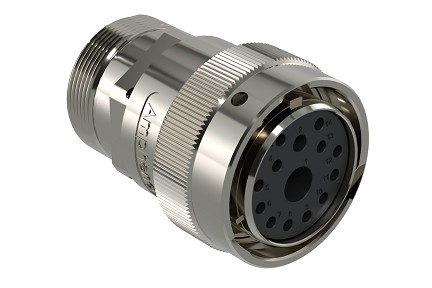

AHDM06-24-14SN-072 14 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14SN-072
AHDM06-24-14SN-072 14 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14SN-072
AHDM06-24-14SN-072 14 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14SN-072
$0.00
Plug
PART NUMBER:
AHDM06-24-14SN-072
Datasheet
:
View / Download
14
Circular
69
100
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
14
Contact Size:
4,12,16
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
100A, 25A, 13A
Wire Range:
6 AWG (16.0-13.0mm²), 10-14 AWG (6.0-2.0mm²),14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
6.63 mm (.261 in) - 7.41 mm (.292 in), 3.43 mm (.135 in) - 4.32 mm (.170 in), 2.54 mm (.100 in) - 3.40 mm (.134 in)
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-24-14P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
14 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14SN-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
