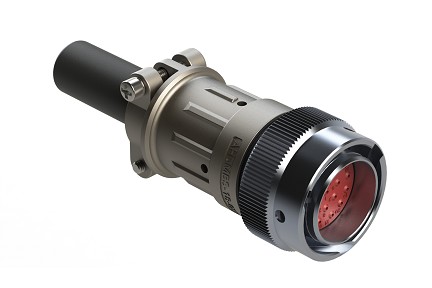

  7. AHDM06-18-21PN-059 Plug Kit, shell size 18, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-21PN-059
AHDM06-18-21PN-059 Plug Kit, shell size 18, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-21PN-059
AHDM06-18-21PN-059 Plug Kit, shell size 18, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-21PN-059

AHDM06-18-21PN-059 Plug Kit, shell size 18, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-21PN-059

$0.00
Plug Kit
PART NUMBER: AHDM06-18-21PN-059
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Positions: 21
  • Contacts Included?: No
  • Contact Size: 20
  • Contact Type (Pin/Socket): Pin
  • Wire Range: 16-22 AWG (1.5-0.35 mm²)
  • Amperage: 7.5 A
  • Housing Material: Zinc Alloy, Nickel Plated
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP67 / IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.02mm (.040") - 2.10mm (.083")
  • RoHS Compliant: TRUE
  • Mating Cycle Durability: >100
  • Mating Part(s): AHDM04-18-21SN
Plug Kit, shell size 18, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-21PN-059



Related Items

A114020-90 Nut, AHDM Series, SIZE 18. Comparable to PN# 114020-90
A114020-90 Nut, AHDM Series, SIZE 18. Comparable to PN# 114020-90
REQUEST A QUOTE
A114021 Lockwasher, AHDM Series, SIZE 18. Comparable to PN# 114021
A114021 Lockwasher, AHDM Series, SIZE 18. Comparable to PN# 114021
REQUEST A QUOTE
AHDC34-18 Protective cap for Plug, AHDM Series, SIZE 18. Comparable to PN# HDC34-18
AHDC34-18 Protective cap for Plug, AHDM Series, SIZE 18. Comparable to PN# HDC34-18
REQUEST A QUOTE
AHDM04-18-21SN Receptacle, Size 18, 21 positions, Socket, standard seal, wide thread. Comparable to HD34-18-21SN
AHDM04-18-21SN Receptacle, Size 18, 21 positions, Socket, standard seal, wide thread. Comparable to HD34-18-21SN
REQUEST A QUOTE
AHDM04-18-21SN-059 Receptacle Kit, shell size 18, 21 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-21SN-059
AHDM04-18-21SN-059 Receptacle Kit, shell size 18, 21 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-21SN-059
REQUEST A QUOTE
AHDM04-18-21SN-072 21 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-21SN-072
AHDM04-18-21SN-072 21 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-21SN-072
REQUEST A QUOTE
AHDM04-18-21SN-L005 21 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-21SN-L005
AHDM04-18-21SN-L005 21 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-21SN-L005
REQUEST A QUOTE
AHDM06-18-21PN Plug, Size 18, 21 positions, Pin, standard seal, wide thread. Comparable to PN# HD36-18-21PN
AHDM06-18-21PN Plug, Size 18, 21 positions, Pin, standard seal, wide thread. Comparable to PN# HD36-18-21PN
REQUEST A QUOTE
AHDMBS-18-001 Size 18 Straight Backshell, Tie wrap End Bell
AHDMBS-18-001 Size 18 Straight Backshell, Tie wrap End Bell
REQUEST A QUOTE
AHDMBS-18-002 Backshell, Size 18, AHDM Series, 2 pc.
AHDMBS-18-002 Backshell, Size 18, AHDM Series, 2 pc.
REQUEST A QUOTE
AHDMBS-18-059 Backshell with camble clamp, size 18
AHDMBS-18-059 Backshell with camble clamp, size 18
REQUEST A QUOTE
AHDM-BS-18NUT Adapter for tube Backshell, AHDM, SIZE 18,
AHDM-BS-18NUT Adapter for tube Backshell, AHDM, SIZE 18,
REQUEST A QUOTE
AHDMBS-18-SM01 Size 18 Backshell, Metal
AHDMBS-18-SM01 Size 18 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04978 Rubber Flange Seal, shell size 18. Comparable to PN# 16-04978
AHDP-16-04978 Rubber Flange Seal, shell size 18. Comparable to PN# 16-04978
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
REQUEST A QUOTE
AT60-20-0122 Size 20 Stamped & Formed Pin Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0122
AT60-20-0122 Size 20 Stamped & Formed Pin Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0122
REQUEST A QUOTE
AT60-20-0144 Size 20 Stamped & Formed Pin Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0144
AT60-20-0144 Size 20 Stamped & Formed Pin Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0144
REQUEST A QUOTE
AT60-202-20141 Size 20 Solid Machined Pin Contact,Nickel Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-20141
AT60-202-20141 Size 20 Solid Machined Pin Contact,Nickel Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-20141
REQUEST A QUOTE
AT60-202-2031 Size 20 Solid Machined Pin Contact, Gold Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-2031
AT60-202-2031 Size 20 Solid Machined Pin Contact, Gold Plating, 7.5A, Wire Range 20AWG. Comparable to PN# 0460-202-2031
REQUEST A QUOTE
AT60-202-20NKIT Size 20 Contact Kit AT60-202-20141. Pin Contacts, 20-22AWG, Nickel Plating, (10 pieces)
AT60-202-20NKIT Size 20 Contact Kit AT60-202-20141. Pin Contacts, 20-22AWG, Nickel Plating, (10 pieces)
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-20 Size 20 Contact Adjustable Crimping Tool
AUTK-20 Size 20 Contact Adjustable Crimping Tool
REQUEST A QUOTE
