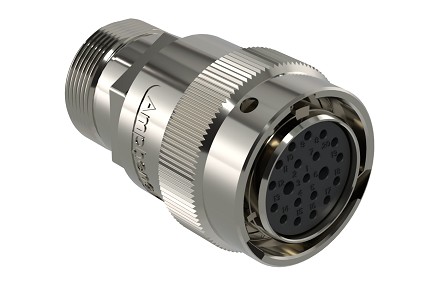

AHDM06-18-20SN-072 20 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-20SN-072
AHDM06-18-20SN-072 20 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-20SN-072
AHDM06-18-20SN-072 20 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-20SN-072
$0.00
Plug
PART NUMBER:
AHDM06-18-20SN-072
Datasheet
:
View / Download
20
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
20
Contact Size:
16,20
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
13A, 7.5A
Wire Range:
16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
1.02mm (.040") - 2.41mm (.095"), 2.54mm (.100") - 3.40mm (.134")
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-18-20P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
20 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-20SN-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
A114020-90 Nut, AHDM Series, SIZE 18. Comparable to PN# 114020-90
REQUEST A QUOTE
A114021 Lockwasher, AHDM Series, SIZE 18. Comparable to PN# 114021
REQUEST A QUOTE
AHDC34-18 Protective cap for Plug, AHDM Series, SIZE 18. Comparable to PN# HDC34-18
REQUEST A QUOTE
AHDM04-18-20PN Receptacle, Size 18, 20 positions, Pin, standard seal, wide thread. Comparable to HD34-18-20PN
REQUEST A QUOTE
AHDM04-18-20PN-059 Receptacle Kit, shell size 18, 20 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-20PN-059
REQUEST A QUOTE
AHDM04-18-20PN-072 20 Position Receptacle, Shell Size 18, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-20PN-072
REQUEST A QUOTE
AHDM04-18-20PN-L005 20 Position Receptacle, Shell Size 18, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-20PN-L005
REQUEST A QUOTE
AHDM04-18-20PR Receptacle, Size 18, 20 positions, Pin, reduced diameter seal, wide thread. Comparable to HD34-18-20PE
REQUEST A QUOTE
AHDM04-18-20PR-059 Receptacle Kit, shell size 18, 20 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-20PE-059
REQUEST A QUOTE
AHDM04-18-20PR-072 20 Position Receptacle, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-20PE-072
REQUEST A QUOTE
AHDM04-18-20PR-L005 20 Position Receptacle, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-20PE-L005
REQUEST A QUOTE
AHDM06-18-20SN Plug, Size 18, 20 positions, Socket, standard seal, wide thread. Comparable to PN# HD36-18-20SN
REQUEST A QUOTE
AHDM06-18-20SN-059 Plug Kit, shell size 18, 20 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-20SN-059
REQUEST A QUOTE
AHDM06-18-20SN-L005 20 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-18-20SN-L005
REQUEST A QUOTE
AHDM06-18-20SR Plug, Size 18, 20 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD36-18-20SE
REQUEST A QUOTE
AHDM06-18-20SR-059 Plug Kit, shell size 18, 20 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-20SE-059
REQUEST A QUOTE
AHDM06-18-20SR-072 20 Position Plug, Shell Size 18, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes
REQUEST A QUOTE
AHDM06-18-20SR-L005 20 Position Plug, Shell Size 18, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes
REQUEST A QUOTE
AHDMBS-18-001 Size 18 Straight Backshell, Tie wrap End Bell
REQUEST A QUOTE
AHDMBS-18-002 Backshell, Size 18, AHDM Series, 2 pc.
REQUEST A QUOTE
AHDMBS-18-059 Backshell with camble clamp, size 18
REQUEST A QUOTE
AHDM-BS-18NUT Adapter for tube Backshell, AHDM, SIZE 18,
REQUEST A QUOTE
AHDMBS-18-SM01 Size 18 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04978 Rubber Flange Seal, shell size 18. Comparable to PN# 16-04978
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
REQUEST A QUOTE
AT60-20-0122 Size 20 Stamped & Formed Pin Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0122
REQUEST A QUOTE
AT60-20-0144 Size 20 Stamped & Formed Pin Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1060-20-0144
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0622 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0622
REQUEST A QUOTE
AT62-16-0644 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0644
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-20141 Size 20 Solid Machined Socket Contact, Nickel Plating, 7.5A, Wire Range 20-22AWG. Comparable to PN# 0462-201-20141
REQUEST A QUOTE
AT62-201-2031 Size 20 Solid Machined Socket Contact, Gold Plating, 7.5A, Wire Range 20-22AWG. Comparable to PN# 0462-201-2031
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-20 Size 20 Contact Adjustable Crimping Tool
REQUEST A QUOTE
