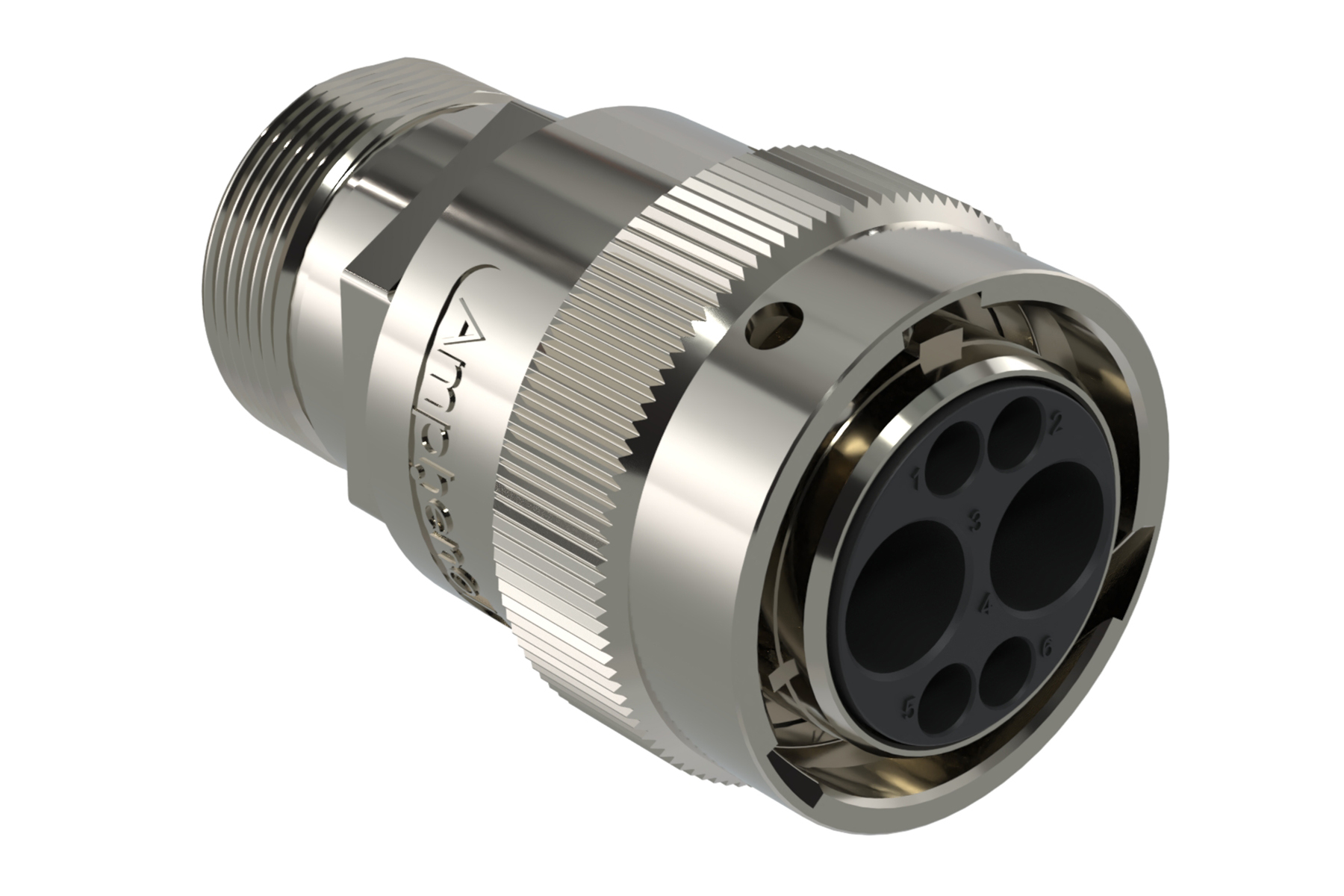

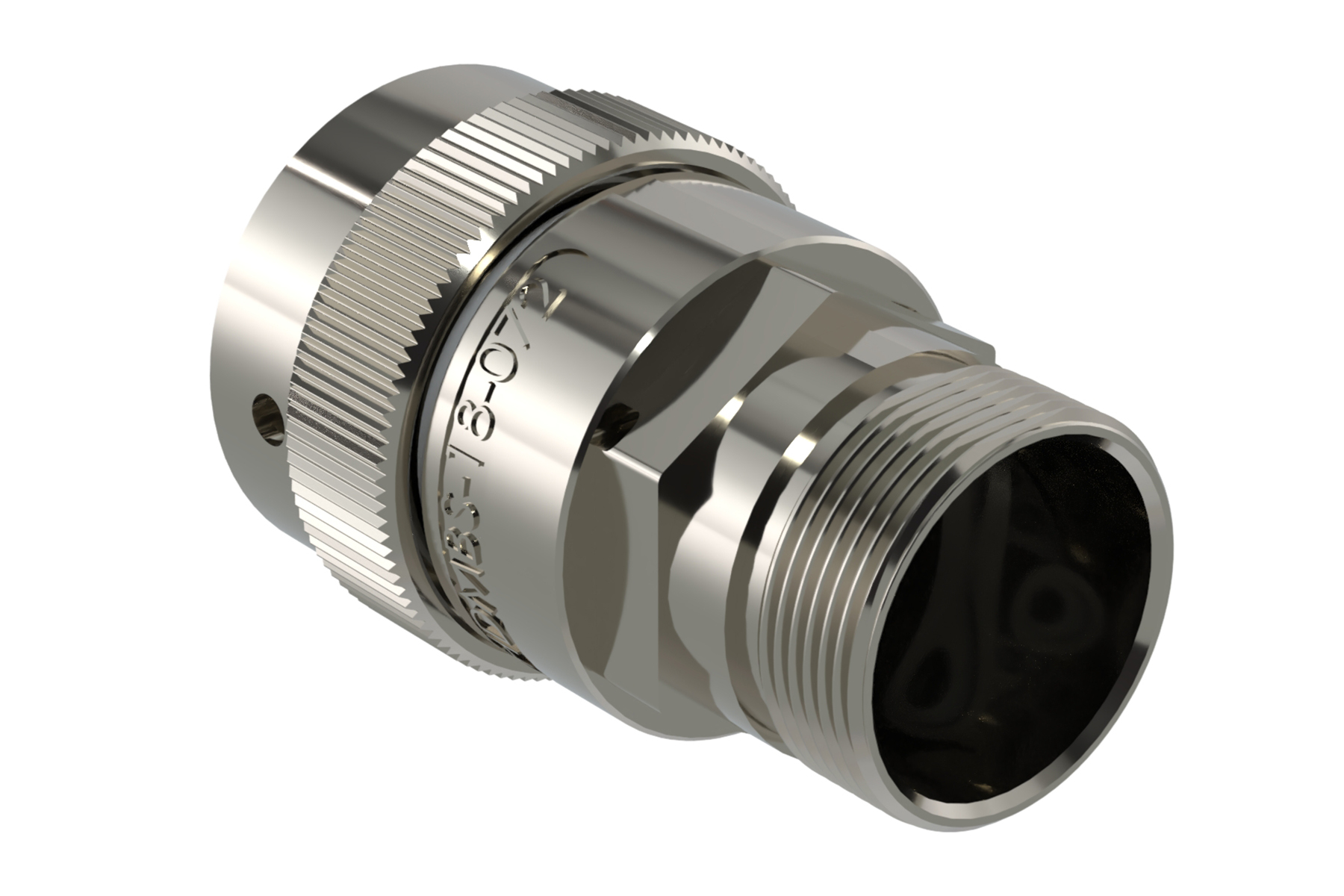

AHDM06-18-06SN-072 6 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-6SN-072
AHDM06-18-06SN-072 6 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-6SN-072
AHDM06-18-06SN-072 6 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-6SN-072
$0.00
Plug
PART NUMBER:
AHDM06-18-06SN-072
Datasheet
:
View / Download
6
Circular
69
100
Metal
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
6
Contact Size:
4,16
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
100A, 13A
Wire Range:
4-6 AWG, (25.0-13.0mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
2.54 mm (.100") -3.40 mm (.134"), 6.63mm (.261") - 7.42mm (.292")
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-18-06P* (NOT C030 OPTION)
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
6 Position Plug, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-6SN-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
