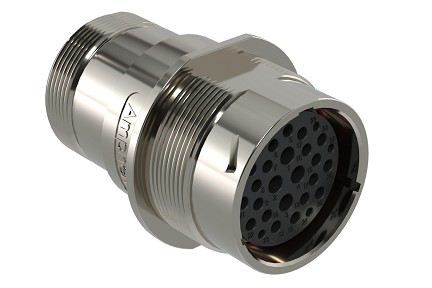

AHDM04-24-29SR-072 29 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-29SE-072
AHDM04-24-29SR-072 29 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-29SE-072
AHDM04-24-29SR-072 29 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-29SE-072
$0.00
Receptacle
PART NUMBER:
AHDM04-24-29SR-072
Datasheet
:
View / Download
29
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
29
Contact Size:
12,16,20
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
25A, 13A, 7.5A
Wire Range:
10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²), 16-22 AWG (1.5-0.35mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120"), 1.02mm (.040") - 2.10mm (.083")
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM06-24-29P*
