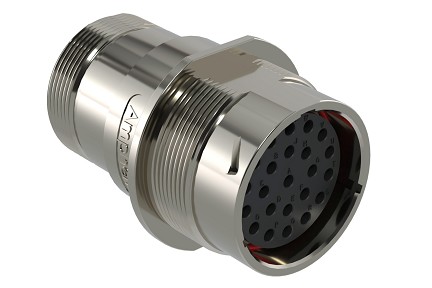

AHDM04-24-23ST-L005 23 Position Receptacle, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23ST-L005
AHDM04-24-23ST-L005 23 Position Receptacle, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23ST-L005
AHDM04-24-23ST-L005 23 Position Receptacle, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23ST-L005
$0.00
Receptacle
PART NUMBER:
AHDM04-24-23ST-L005
Datasheet
:
View / Download
23
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
23
Contact Size:
16
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
13A
Wire Range:
14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
2.23mm (.088") - 2.69mm (.106")
Rear Seal Type:
Thin Seal
Seal Color Coded Adaptor:
Grey
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM06-24-23P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
23 Position Receptacle, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23ST-L005
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC36-18 Protective Cap for Receptacle, AHDM Series, SIZE 18. Comparable to PN# HDC36-18
REQUEST A QUOTE
AHDC36-24 Protective cap for RECEPTACLE, AHDM Series, SIZE 24. Comparable to PN# HDC36-24
REQUEST A QUOTE
AHDM04-24-23SN Receptacle, Size 24, 23 positions, Socket, standard seal, wide thread. Comparable to PN# HD34-24-23SN
REQUEST A QUOTE
AHDM04-24-23SN-059 Receptacle Kit, shell size 24, 23 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-23SN-059
REQUEST A QUOTE
AHDM04-24-23SN-072 23 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23SN-072
REQUEST A QUOTE
AHDM04-24-23SN-L005 23 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23SN-L005
REQUEST A QUOTE
AHDM04-24-23SR Receptacle, Size 24, 23 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD34-24-23SE
REQUEST A QUOTE
AHDM04-24-23SR-059 Receptacle Kit, shell size 24, 23 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-23SE-059
REQUEST A QUOTE
AHDM04-24-23SR-072 23 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23SE-072
REQUEST A QUOTE
AHDM04-24-23SR-L005 23 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-23SE-L005
REQUEST A QUOTE
AHDM04-24-23ST 23 Position Receptacle, Socket, Shell Size 24, Metal, Thin Diameter Seal. Comparable to PN# HD34-24-23ST
REQUEST A QUOTE
AHDM04-24-23ST-059 23 Position Receptacle, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD34-24-23ST-059
REQUEST A QUOTE
AHDM04-24-23ST-072 23 Position Receptacle, Shell Size 24, Socket, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-23ST-072
REQUEST A QUOTE
AHDM06-24-23PN Plug, Size 24, 23 positions, Pin, standard seal, wide thread. Comparable to PN# HD36-24-23PN
REQUEST A QUOTE
AHDM06-24-23PN-059 Plug Kit, shell size 24, 23 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-23PN-059
REQUEST A QUOTE
AHDM06-24-23PN-072 23 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23PN-072
REQUEST A QUOTE
AHDM06-24-23PN-L005 23 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23PN-L005
REQUEST A QUOTE
AHDM06-24-23PR Plug, Size 24, 23 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD36-24-23PE
REQUEST A QUOTE
AHDM06-24-23PR-059 Plug Kit, shell size 24, 23 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-23PE-059
REQUEST A QUOTE
AHDM06-24-23PR-072 23 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23PE-072
REQUEST A QUOTE
AHDM06-24-23PR-L005 23 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23PE-L005
REQUEST A QUOTE
AHDM06-24-23PT 23 Position Plug, Pin, Shell Size 24, Metal, Thin Diameter Seal. Comparable to PN# HD36-24-23PT
REQUEST A QUOTE
AHDM06-24-23PT-059 23 Position Plug, Pin, Shell Size 24, Metal, Thin Diameter Seal (Grey) cable clamp backshell. Comparable to PN# HD36-24-23PT-059
REQUEST A QUOTE
AHDM06-24-23PT-072 23 Position Plug, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-23PT-072
REQUEST A QUOTE
AHDM06-24-23PT-L005 23 Position Plug, Shell Size 24, Pin, Thin Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-23PT-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0622 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0622
REQUEST A QUOTE
AT62-16-0644 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0644
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
