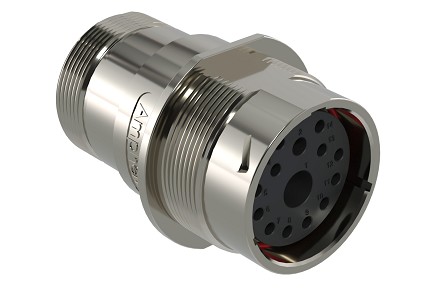

AHDM04-24-14SR-072 14 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-14SE-072
AHDM04-24-14SR-072 14 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-14SE-072
AHDM04-24-14SR-072 14 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-14SE-072
$0.00
Receptacle
PART NUMBER:
AHDM04-24-14SR-072
Datasheet
:
View / Download
14
Circular
69
100
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
14
Contact Size:
4,12,16
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
100A, 25A, 13A
Wire Range:
6 AWG (16.0-13.0mm²), 10-14 AWG (6.0-2.0mm²),14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
6.63 mm (.261 in) - 7.41 mm (.292 in), 2.46 mm (.135 in) - 4.01 mm (.158 in), 1.35 mm (.053 in) - 3.05 mm (.120 in)
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM06-24-14P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
14 Position Receptacle, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-14SE-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
Related Items
65-54748 - Diagnostic Grade™ Gold-Plated Female Contact Socket
REQUEST A QUOTE
65-54757- Diagnostic Grade Gold-Plated Female Contact Socket
REQUEST A QUOTE
A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
REQUEST A QUOTE
A114019 Blank Seal Plug, Size 4, 4-6 AWG. Comparable to PN #114019
REQUEST A QUOTE
AHDC04-24 Protective cap for plugs, Size 24
REQUEST A QUOTE
AHDC04-24-PM Size 24, Plug cap, threaded and sealed
REQUEST A QUOTE
AHDC04-24-PMT Size 24, Plug cap, threaded and sealed with tether
REQUEST A QUOTE
AHDC04-24-T Size 24, Plug cap, threaded and sealed with tether
REQUEST A QUOTE
AHDC06-24 Size 24, Receptacle cap, threaded and sealed. Comparable to PN# HDC26-24
REQUEST A QUOTE
AHDC06-24-T Size 24 Protective Cap for Receptacle, With Cord Grip
REQUEST A QUOTE
AHDM04-24-14SN 14 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green). Comparable to PN# HD34-24-14SN
REQUEST A QUOTE
AHDM04-24-14SN-059 14 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green), Cable Clamp Backshell, Break-Away. Comparable to PN# HD34-24-14SN-059
REQUEST A QUOTE
AHDM04-24-14SN-072 14 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-14SN-072
REQUEST A QUOTE
AHDM04-24-14SN-L005 14 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-14SN-L005
REQUEST A QUOTE
AHDM04-24-14SR 14 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue). Comparable to PN# HD34-24-14SE
REQUEST A QUOTE
AHDM06-24-14PN 14 Position Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green). Comparable to PN# HD36-24-14PN
REQUEST A QUOTE
AHDM06-24-14PN-059 14 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green), Cable Clamp Backshell, Break-Away. Comparable to PN# HD36-24-14PN-059
REQUEST A QUOTE
AHDM06-24-14PN-072 14 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14PN-072
REQUEST A QUOTE
AHDM06-24-14PN-L005 14 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-14PN-L005
REQUEST A QUOTE
AHDM06-24-14PR 14 Position Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue). Comparable to PN# HD36-24-14PE
REQUEST A QUOTE
AHDM06-24-14PR-059 14 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Cable Clamp Backshell, Break-Away. Comparable to PN# HD36-24-14PE-059
REQUEST A QUOTE
AHDM06-24-14PR-072 14 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-14PE-072
REQUEST A QUOTE
AHDM06-24-14PR-L005 14 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-14PE-L005
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDP24-PN01 Panel Nut Shell, Size 24, Comparable to PN# 2411-001-2405
REQUEST A QUOTE
AHDPBS-010-2405 Size 24 Backshell, Conduit snap over straight. Comparable to PN# 2428-010-2405
REQUEST A QUOTE
AHDPBS-011-2405 Size 24 Backshell, Conduit snap over right angle. Comparable to PN# 2428-004-2405
REQUEST A QUOTE
AHDPBS-0406-001 Size 24 Backshell WTA. Comparable to PN# 2428-024-2405
REQUEST A QUOTE
AHDPBS-0406-002 Size 24 Backshell WTA 2 PC. Cable diameter range: .57-.71”
REQUEST A QUOTE
AHDPBS-0406-003 Size 24 Backshell WTA 2 PC. Cable diameter range: .76-.95” (19.5mm - 24.1mm)
REQUEST A QUOTE
AHDPBS-0406-SM01 Size 24 Backshell sealed with cable grommet
REQUEST A QUOTE
AHDPBS-10L017-2405 Shell Size 24 Snap Over Straight Backshell Cover for Backshell Ring Adapter Connectors (*-BRA). Comparable to PN# 2428-010-2405
REQUEST A QUOTE
AHDPBS-11L017-2405 Shell Size 24 Snap Over Right Angle Backshell Cover for Backshell Ring Adapter Connectors (*-BRA). Comparable to PN# 2428-011-2405
REQUEST A QUOTE
AT11-027-0405 Contact removal tool, Size 4, 4 AWG. Comparable to PN# 0411-027-0405
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT114009 Contact removal tool, Size 4, 6 AWG. Comparable to PN# 114009
REQUEST A QUOTE
AT14-001-2486 Metal Lock Washer, Size 24. Comparable to PN# 2414-001-2486
REQUEST A QUOTE
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
REQUEST A QUOTE
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
REQUEST A QUOTE
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
REQUEST A QUOTE
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0622 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0622
REQUEST A QUOTE
AT62-16-0644 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0644
REQUEST A QUOTE
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
REQUEST A QUOTE
AT62-203-04141 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 6AWG. Comparable to PN# 0462-203-04141
REQUEST A QUOTE
AT62-203-04141-4 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 4AWG. Comparable to PN# 5962-203-04141
REQUEST A QUOTE
AT62-203-0431-4 Size 4 Machined Socket Contact, Gold Plating, 100A, Wire Range 4AWG
REQUEST A QUOTE
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
REQUEST A QUOTE
AT62-203-12NKIT Size 12 Machined Contact Kit AT62-203-12141. Socket Contacts, 25A, Wire Range 12-14 AWG, Nickel Plating, (10 pieces)
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
REQUEST A QUOTE
AT62-210-1231-1820 Size 12 Machined Contact, Socket, 25A, Wire Range 18-20AWG, Gold Plating, Diagnostic Grade
REQUEST A QUOTE
ATRT-100 - Contact and Wedgelock Extraction Tool
REQUEST A QUOTE
ATT-12-00 - Contact Crimp Tool, S&F, Size 12, 12-14AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
ATT-12-01 - Contact Crimp Tool, S&F, Size 12, 10AWG/6mm²/12AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
ATT-16-00 - Contact Crimp Tool, S&F, Size 16, 14AWG/16AWG/18AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
ATT-16-01 - Contact Crimp Tool, S&F, Size 16, 16AWG/18AWG/20AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
CA-5D12 - Universal Hand Crimp Tool, Size 12/16/20 Solid Contacts Only
REQUEST A QUOTE
CA-5E12 - Pneumatic Crimp Tool, Size 12/16/20 Solid Contacts Only
REQUEST A QUOTE
MFX-3950 - Size 16 Crimp Die for Stamped and Formed Contacts 18-20 AWG
REQUEST A QUOTE
MFX-3973 - Size 12 Crimp Die for Stamped and Formed Contacts
REQUEST A QUOTE
MFX-3975 - Size 16 Crimp Die for Stamped and Formed Contacts 14-16 AWG
REQUEST A QUOTE
WA23-11 Contact Locater, Size 4
REQUEST A QUOTE
WA23-138DA Die Assembly for Heavy Duty Pneumatic Crimp Tool, Size 4
REQUEST A QUOTE
