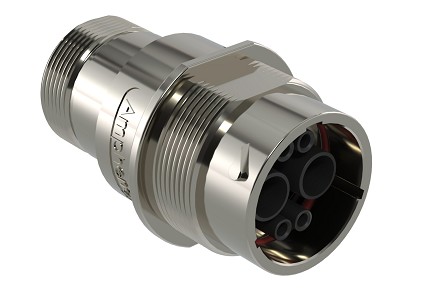

  7. AHDM04-18-06SN-C030-072 6 Position (2 Used), Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes
AHDM04-18-06SN-C030-072 6 Position (2 Used), Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes
AHDM04-18-06SN-C030-072 6 Position (2 Used), Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes

AHDM04-18-06SN-C030-072 6 Position (2 Used), Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes

$0.00
Receptacle
PART NUMBER: AHDM04-18-06SN-C030-072
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Positions: 6
  • Contact Size: 4
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Contacts Included: No
  • Amperage: 100A
  • Wire Range: 4-6 AWG, (25.0-13.0mm²)
  • Voltage Rating: 250V
  • Housing Material: Zinc Alloy, Nickel Plated
  • Operating Temperature: '-55°C TO +125°C
  • IP Rating: IP67 & IP69K (in mated condition)
  • Shape: Circular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • Seal Diameter: 6.63 mm (.261")-7.41 mm (.292")
  • Rear Seal Type: Normal Diameter Seal
  • Seal Color Coded Adaptor: Green
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mounting Style: Free Hanging
  • Mating Part*: AHDM06-18-06P* (C030 OPTION)
6 Position (2 Used), Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes
